Place of Origin: | China |
---|---|
Brand Name: | SHX |
Certification: | ISO, CE, Soncap, EPA |
Model Number: | SCF-1000 |
Minimum Order Quantity: | 1 set |
Price: | USD 60000-80000USD |
Packaging Details: | Plyfilm or plywood |
Delivery Time: | 25 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 20 Sets per Month |

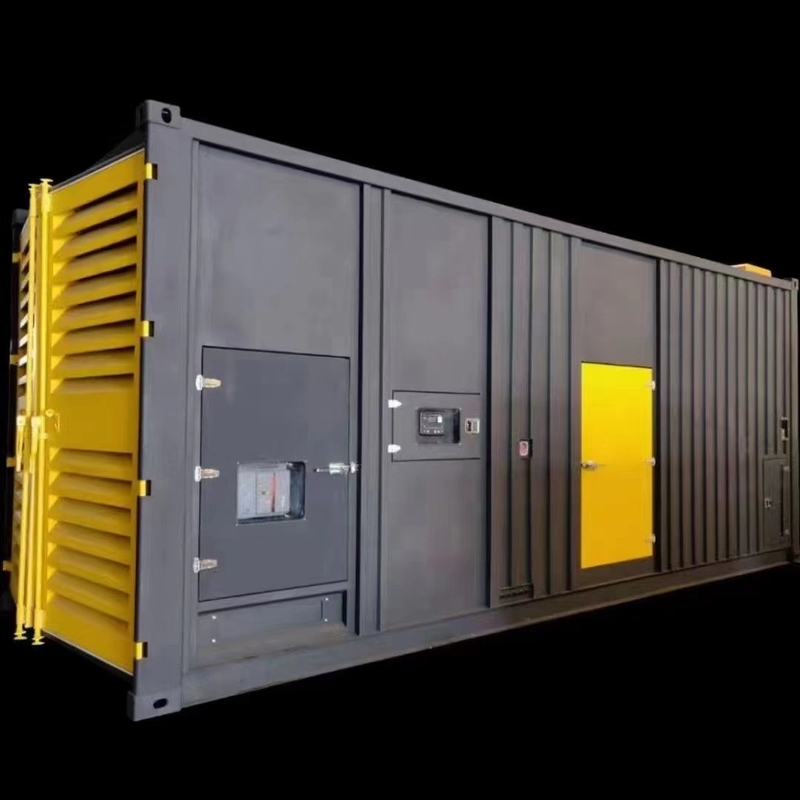

Type: | Silent/Open/Trailer/Canopy/Container | Controller: | Deepsea/Smartgen/etc |
---|---|---|---|
Color: | Yellow Or According To Customer's Requirement | Fuel Tank: | Base Fuel Tank/External FueL Tank |
Cooling Method: | Water Cooling | Protection Class: | IP21-23 |
High Light: | 1600kw Diesel Engine Generator,2000kva Diesel Engine Generator,Low Emission Diesel Engine Generator |
Diesel Generator Technical Parameters
|
|
Genset Model:SHX-2000
|
Rated Power:1800KVA/1440KW
|
Frequency:50HZ
|
Rated Speed:1500rpm
|
Rated Voltage:400V
|
Rated Current:2598A
|
Phase:3 phase 4 wire
|
Start method:DC24V electric start
|
Silent type size(L*W*H) :40FT HQ CONTAINER
|
Weight:18000KG
|
Engine Technical Parameters
|
|
Engine Brand:CUMMINS
|
Engine Model:QSK60
|
Engine Rated Power:1600KW
|
Number Of Cylinders:12 cylinder V type
|
Bore*Stroke:152*180mm
|
Compression ratio:14:1
|
Displacement:60L
|
Fuel Consumption :215g/Kw*h
|
Alternator Technical Parameters
|
|
Optional Brands:Stamford/Leroy Somer/Mecc Alte/Marathon
|
|
Voltage adjust range:≥5%
|
Rated power factor:0.8
|
Protect Grade:IP23
|
Insulation Class:H
|
The standard configuration of the generator set is as follows:
Brand new Cummins electric governor diesel engine and Leroy-somer brushless self exciting 100% copper alternator.
Intelligent LED display control panel;
Speed governor & AMF(MCCB)
Electric start and 24v charger;
Standard air filter, oil filter, fuel filter; Cooling water tank;
High-efficient silencer
Exhaust elbow
Steel base-frame against vibration;
Soft pipe for fuel and handle for lube going-out;
Operation& Maintenance manual.
Battery Charger
● Prime Power : Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(eqvISO8528); A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
● Standby Power : The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload allowed, utility parallel or negotiated outage operation capability is available at this rating.
