Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO, CE |
| Model Number: | SVF165 |
| Minimum Order Quantity: | 1 |
| Price: | USD11000-12500/Set |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 sets per year |
| Color: | Customized | Speed: | 1500RPM |
|---|---|---|---|
| Output Type: | AC Three Phase | Speed Governing: | Electronic |
| Insulation Class: | H | Protection Grade: | IP23 |
| High Light: | 150kva Backup Diesel Generator,120kw Backup Diesel Generator,Industrial Silent Diesel Generator |
||

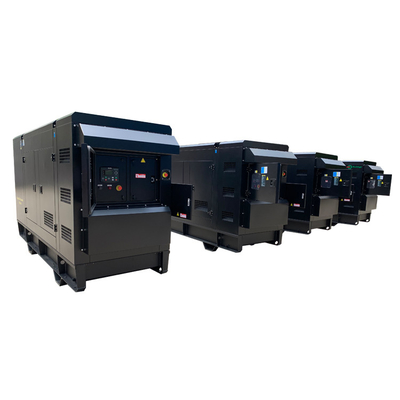

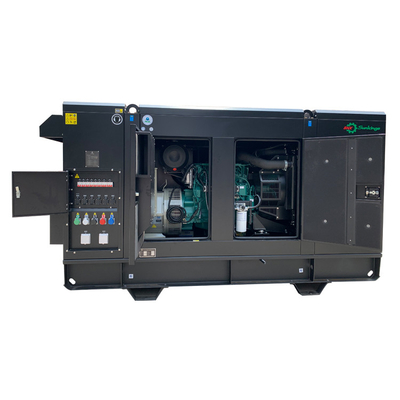

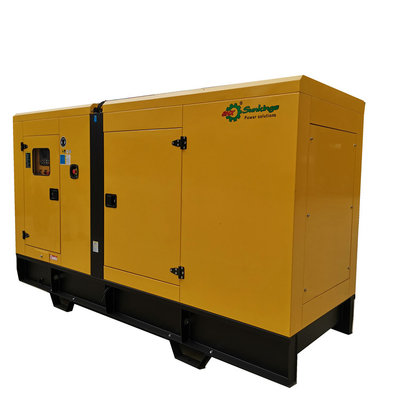

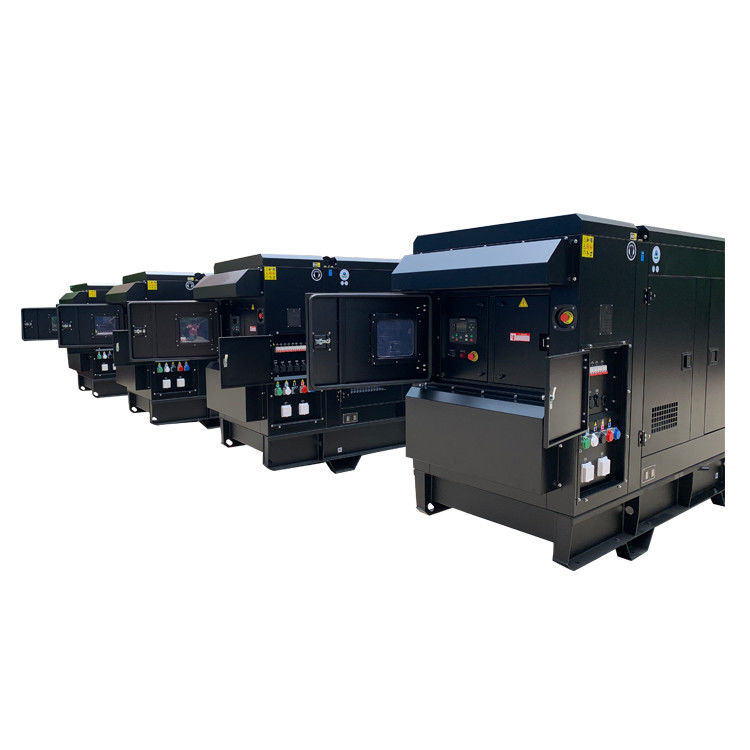

SHX 120kw 150kva Backup Diesel Generator Industrial Use Silent Diesel Generator
A Diesel Generator (DG) is a combination of diesel engine with electrical generator (often called an alternator) to generate electricity. DG sets are used in places that have no connection to power grid, and as emergency power-supply if the grid fails. In other words DGs remain the number one choice for standby and emergency power systems. DGs are selected based on the electrical load they are intended to supply.
Some Special Features :
Given below are some the special features of DG sets marketed by us.
· Compact, sleek, manual/automatic
· Sound proof and weather proof enclosure
· Confirms to statutory Government noise level norms
· Enclosure is of modular construction with provision to assemble and dismantle easily
· Fuel tank is provided with breather and drain plugs for filling and draining diesel from outside the enclosure
· Fuel level is indicated with the help of fuel gauge meter
· Drain plugs provided outside the enclosure for draining mobile oil
· Battery is provided in a tray inside the enclosure
· Doors have high quality gaskets to avoid leakage of sound
· Sound proofing of enclosure is done with high quality foam, which is further covered with fiberglass sheet and perforated powder coated sheet.
| Diesel Generator Set Specification | |
| Model | SVF165 |
| Genset Prime Power | 150KVA / 120KW |
| Engine | Volvo Penta |
| Engine Model | TAD731GE |
| Engine Type | 4 Stroke, Water Cooled |
| Alternator | Stamford / Leroy Somer / Farrand / Marathon |
| Voltage Regulation | AVR |
| Controller | Deep Sea / ComAp / Smartgen |
| Warranty | 1 year / 1000 running hours |
| Certificate | CE, ISO |
| Place of Origin | Foshan, China |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 216A |
| Cooling Method | Closed Cycle Water-cooled With Radiator |
| Power Factor | 0.8 Lagging |
| Fuel Injection System | ECU |
| Starting System | Electric Start |
SHX Soundproof Generator Set Features:
A new kind of acoustic material is used as pugging, noise reducing return-flow wind tunnel is used as generator set's ventilation system, and louver is installed in the window to prevent rains and other intruders. High efficiency silencer with double level structure and another silencer between two levels keep the noise at the lowest level. The box is modular structure with indicator and maintenance doors which make installation, operation and maintenance very convenient. Benefited from the special design, medium low noise diesel generator set's noise can be as low as 75dB (A) (at LP7m). Fuel tank can be installed on it according to customer needs.
