900kw Cummins Diesel Generator Set

Basic Information

Place of Origin:	China
Brand Name:	SHX
Certification:	ISO, CE, Soncap, EPA
Model Number:	SCF-

Minimum Order Quantity:	1 set
Price:	USD 60000-100000USD
Packaging Details:	Plyfilm or plywood
Delivery Time:	25 working days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	50 Sets per Month

Get Best Price Contact Now

Rated Voltage:	400/230V,220V / 380V	Frequency:	50/60HZ
Speed:	1500/1800rpm	Output Type:	AC Three Phase
Warranty:	12 Months/1000 Hours	Options:	Silent Canopy/trailer/ATS/Fuel Tank
High Light:	900kw Cummins Diesel Generator Set , Cummins containerized genset , Three Phase Container Diesel Genset

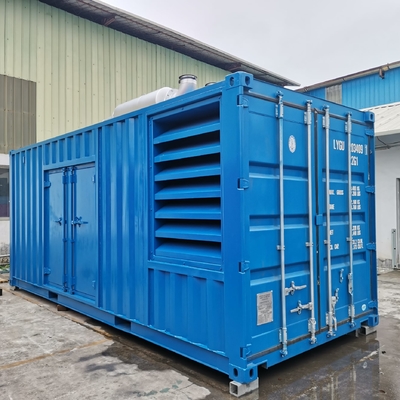

SHX 900kw Cummins Diesel Generator Set Container Diesel Genset Three Phase Power Plant

Model	Voltage	HZ	P.F (COS￠)	Prime power
SCF-1375	110,230,400V	50/60Hz	0.8	908KW/1135KVA

Engine Model	Cummins
Number of Cylinders	12 cylinders
Cycle	4 stroke
Aspiration	Turbocharged and after water cooled
Bore×Stroke	159mm x159mm
Displacement	37.8L
Fuel Consumption at 100% Load	207g/kw.h
Starter Motor	DC24V
Alternator	Stamford/Marathon/Leroysomer/Farrand
Prime power	1135KVA
Frequency/speed	50/60Hz
Exciter type	Brushless
Power factor	0.8
Voltage adjust range	≥±5%
Voltage regulation NL-FL	±0.5%
Insulation Grade	H
Protection Grade	IP23
Phase	Three phase
Smartgen control panel data
Controller Brand	Deepsea /ComAp /Smartgen
Controller Display	Output frequency Engine speed Battery voltage Engine run-time (Hours) Note: 1. The engine coolant temperature displayed by water temperature gauge 2. The engine oil pressure displayed by oil pressure meter 3. Generator current displayed by current meter, to change switch for each phase displayed separately

Generator Set	Fuel System	Control system	Alternator	Low environment temperature
Open generator set	8h/12h/24hours fuel tank	AMF function	PMG excitation	Water heater
Super Silent Type	Dual wall base fuel tank	ATS	Space heater	Oil heater
Trailer Type	Outside fuel tank	Multiple generator automatic synchrorising		Battery heater

900kw Cummins Diesel Generator Set 0

900kw Cummins Diesel Generator Set 1

Sunkings diesel generator sets are manufactured with world-class standards, featuring high-quality engine cores, strong and stable output performance, lower fuel consumption, silent working conditions, and intelligent automatic controller operation.

The diesel genset accessories are all internationally knowned brands such as:Cummins, Perkins, Deutz, Weichai and other brand engines, and AC brushless pure copper motors of Stamford, Marathon, Leroy Somer, Engga and other.

From the initial inspection to completed delivery, we guarantee long term quality for your commercial and industrial applications. Our commercial and industrial generator sets offer a variety of options to meet your power needs, making selection and installation simple.

900kw Cummins Diesel Generator Set 2

900kw Cummins Diesel Generator Set 3
