Brand Name: | SHX |
Model Number: | SCF-1100 |
MOQ: | 1 set |
Price: | USD 60000-80000USD |
Packaging Details: | Plyfilm or plywood |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |

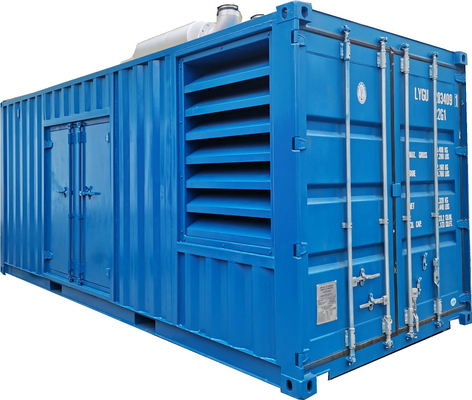

SHX 1 Mega Silent Generator Back Up Generator Emergency Standby Power Generator
1. SPECIFICATIONS OF GEN-SET | ||
1.1 | Set Model | SCF-1100 |
1.2 | Prime at 50HZ, 40℃ ambient | 800kW 1000KVA |
1.3 | Standby at 50HZ, 40℃ ambient | 880kW 1100KVA |
1.4 | Rated Gen-set output | 230/400V 50Hz |
1.5 | Rated Relative humidity | ≤ 60 % |
1.6 | Dimension (L×W×H) | 20ft container |
1.7 | Weight | 9050kg |
1.8 | Fuel consumption 100% prime load | 191L/h |
1.9 | Total heat radiated to ambient | 163KW |
1.10 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
1.11 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
2. SPECIFICATIONS OF ENGINE | ||
2.1 | Engine Brand | Cummins |
2.2 | Engine Model | KTA38-G5 |
2.3 | Governor/Class | Electrical |
2.4 | Cylinder NO. | 12 |
2.5 | Engine build | Vee |
2.6 | Fuel spray pattern | PT direct injection |
2.7 | start-up method | 24V, electric |
2.8 | Aspiration | Turbocharged/Aftercooled |
2.9 | Cooling mode | Radiator cooled (enclose water) |
2.10 | Bore and stroke | 159×159mm |
2.11 | Compression ratio | 13.9:1 |
2.12 | Displacement | 38L |
2.13 | Engine Prime Power at 1500rpm | 880KWm |
2.14 | Engine Standby Power at 1500rpm | 970KWm |
2.15 | Battery capacity | 254A/hr |
2.16 | Starting/Min temperature | 7℃ |
2.17 | Lubrication oil capacity | 135L |
2.18 | Coolant capacity - radiator and engine (40℃) | 308L |
2.19 | Exhaust temp - full load prime | 499℃ |
2.20 | Exhaust gas flow - full load prime | 10663m3/h |
2.21 | Exhaust gas back pressure max | 76mmHg |
2.22 | Air flow - radiator (40℃ ambient) | 15 m 3/s |
2.23 | Pusher fan head (duct allowance) 40℃ | 13mmH 2O |
2.24 | Air intake - engine - full load prime | 4104m3/h |
2.25 | Standard Air intake temp | 25℃ |
2.26 | Fuel type | #0 Diesel (Natural temperature) |
2.27 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
2.28 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
3. SPECIFICATIONS OF ALTENATOR | ||
3.1 | Alternator Model | Stamford/Leroysomer/Farrand |
3.2 | Alternator Type | A.C. Synchronous |
3.3 | Rated Voltage | 230/400V |
3.4 | Rated Frequency | 50HZ |
3.5 | Rated speed | 1500 RPM |
3.6 | Voltage regulation mode | Auto |
3.7 | Alternator voltage regulation | ±0.5% |
3.8 | Exciting mode | Brushless self exciting |
3.9 | Power factor | 0.8 (lagging) |
3.10 | Phase & wires | 3 phase 12 wires |
3.11 | Rated currency | 1443.4A |
3.12 | Efficiency | 0.942 |
3.13 | Insulation class | H |
3.14 | Protection class | IP23 |
3.15 | Single load step to NFPA110 | 100% |
3.16 | Standards | IEC34-1 |
3.17 | Max. Ambient Temperature | 40℃ |
3.18 | Min. Ambient Temperature | - 20℃ |
3.19 | Max. altitude | 1000m |
3.20 | Weight | 2190kg |
Our services |
Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours.
Warranty period is one year or 1000 hours (depends on which occurs first ). If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.
We can professionally arrange experienced engineers to provide users with free training in our factory . Certainly , we also provide the paid training of customers’ site.
Company advantages |
we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
