Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO, CE, Soncap, EPA |
| Model Number: | SCF-550 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 20000-40000 |
| Packaging Details: | Plyfilm or plywood |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 40 Sets per Month |
| Certification: | CE, ISO | Rated Current: | 630A |
|---|---|---|---|
| Frequency: | 50hz / 60hz | Genset Weight(kg): | 4000KGS |
| Port: | Guangzhou, Foshan | Optional Controller: | Deepsea, Smartgen, ComAp |
| High Light: | 500kva Cummins Diesel Generator Set,Cummins Diesel Generator Set SHX,Electric Start Diesel Generator |
||

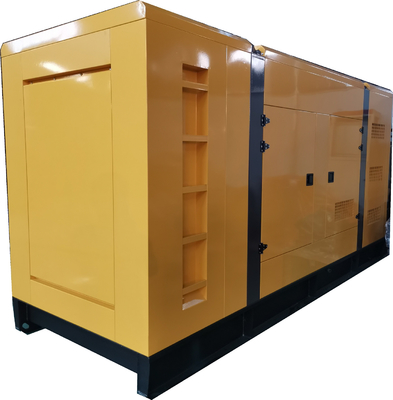

SHX 500kva Cummins Diesel Generator Set Indusstrial Power Plant Electric Start Generator
Features:
1) Engine and alternator shall be mounted on a same frame steel skid
2) Built-in damper for anti-vibration
3) Small size, low weight, easy to operate, installation and maintenance
4) World most famous brand diesel engine
5) World famous brand AC alternator: Stamford
6) Advanced and reliable control module: Key start, auto start
7) Full range protects function and alarm shutdown feature
8) According to professional standards
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<65DBA Super Silent
Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation under all condition
3. Optional accessories available for easy paralleling with mains or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
| tandby Power | KVA | 500 |
| KW | 400 | |
| Prime Power | KVA | 450 |
| KW | 360 | |
| Voltage type | 50Hz, 380/220V, 3 phases and 4 wires | |
Performance Data
| Engine Brand & Model | KTA19-G3 |
| Alternator Brand & Model | Leroy Somer LSA47.2S5 |
| Control System | Deepsea DSE6120 |
| Standrd Noise Level@7m (Soundproof Sets) | 75 dBA |
| Circuit Breaker Type | 3 Poles MCCB |
| Frequency & Phase | 50hz 3Phases + 4Wires |
| Engine Speed (RPM) | 1500 |
| Fuel Consumption (L/hr) (100% Load) | 90 |
