Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO, CE |
| Model Number: | SYF1375 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 94000-103000 |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 Sets per year |
| Rated Voltage: | 400/230V | Speed: | 1500RPM |
|---|---|---|---|
| Frequency: | 50Hz | Output Type: | AC Three Phase |
| Warranty: | 1 Year Or 1000 Hours | Controller: | Deepsea/Smartgen/etc |
| High Light: | 1mw Power Diesel Generator,1250kva Power Diesel Generator,Turbocharged AC 3 Phase DG Set |
||

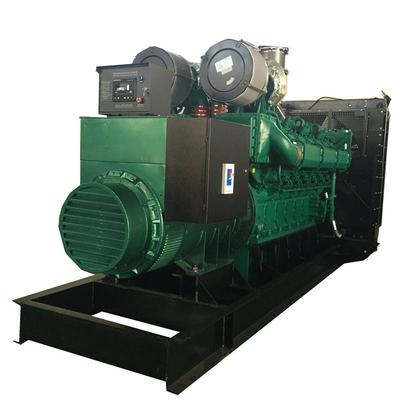

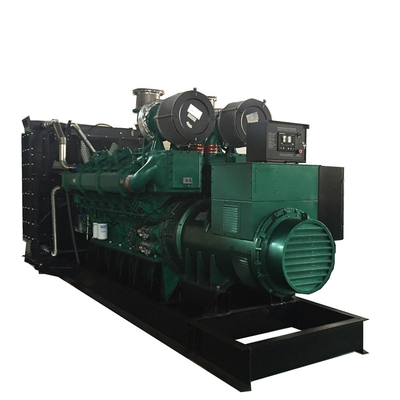

SHX 1250kva Power Diesel Generator 50Hz 400V 3 Phase 1mw Diesel Generator
Power Specifications
1) 1500RPM at 50Hz/1800RPM at 60Hz
2) Water Cooled
3) Turbocharged
Electrical Specifications
1) Power Factor: 0.8 Lagging
2) 3 Phase 4 Pole
3) Insulation: Class H
4) Brushless
5) Self-Excited
6) IP23 Protection
7) AVR regulation
8) Starting by Battery
| Model No. | STANDBY POWER | PRIME POWER | ENGINE | ALTERNATOR | CONTROLLER | ||
| KVA | KW | KVA | KW | ||||
| SYF1375 | 1375 | 1100 | 1250 | 1000 | YC12VTD1680-D30 | FD6E1-4 | HGM6110N |
| Governor Class | ISO8528 G3 |
| Potential Drop | 1% |
| Steady Voltage Regulation | 1% |
| Frequency Drop | Synchronous(0%) |
| Steady-state Frequency | 0.25% |
| R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
| Fuel Consumption Rate ,g/kw.h(L/hr) | 195(232.1) |
| Starting Battery Capacity ,A/hrhhr | 200*4 |
| Displacement (L) | 79.17 |
OEM Service
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to customer’s requirement.
4. Full warranty cover to support the customers.
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturer’s cost.
1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.
1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries, instruments and controls for a complete test of the generator set.
FAQ
1.What is the power range of your diesel generator sets?
Answer: We can provide diesel generator sets from 25kva to 2750kva.
2.What is your payment term?
Answer: We can accept T/T and L/C.
3.What is your warranty?
Answer: One year or 1000 running hours whichever comes first.
4.What is your MOQ?
Answer: MOQ is 1 set.
5.What is the frequency and voltage standard or your diesel generator sets?
Answer: 50Hz / 60Hz, 480/277V, 415/240V, 400/230V, 380/220V or requested voltage.
6.Do you offer OEM service?
Answer: Yes.
7.What is your delivery time?
Answer: Average 20 days.
