Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO, CE |
| Model Number: | SPF619 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 sets per year |
| Color: | Customers' Request | Engine Brand: | Perkins |
|---|---|---|---|
| Alternator Brand: | Farrand / Stamford / Leroy Somer | Genset Type: | Soundproof |
| Air Intake: | Turbocharged And Intercooled | Output Type: | 3 Phase 4 Wire |
| High Light: | 450kw Perkins Diesel Generator Set,563kva Perkins Diesel Generator Set,450 kw Perkins Diesel Generator |
||

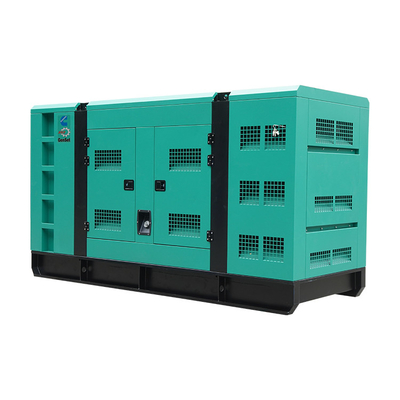

SHX Perkins Diesel Generator Set 450kw 563kva Standby Genset Commercial Diesel Generators
Power Specifications
1) 1500RPM at 50Hz/1800RPM at 60Hz
2) Water Cooled
3) Turbocharged
Electrical Specifications
1) Power Factor: 0.8 Lagging
2) 3 Phase 4 Pole
3) Insulation: Class H
4) Brushless
5) Self-Excited
6) IP23 Protection
7) AVR regulation
8) Starting by Batteries
Genset specifications
| Engine | Perkins 2806C-E18TAG1A | Alternator | Farrand FLD544DL |
| Prime Power | 450KW / 563KVA | Standby Power | 495KW / 619KVA |
| Output Type | AC Three Phase | Frequency | 50Hz / 1500RPM |
| Cooling System | Closed Cycle Water Cooled | Control System | Deep Sea 6020 |
| Voltage | 230/400V | Circuit Breaker | 3 Pole MCCB |
| Voltage Regulation | AVR | Starting Method | By batteries |
| Color | White, Yellow, Green Etc. | Speed Governing | Electric |
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
Automatic Transfer Switch (ATS)
Automatic Transfer Switches are an integral part of the power generation process, which allows smooth and immediate transfer of electrical current between multiple sources and the load. When the generator is operating, the transfer switch prevents dangerous feedback of current to the utility’s system. It also ensures that different power sources are fully synchronized before their power is combined or loads are transferred, which is imperative for safe operation.
The transfer switch senses when utility power is interrupted, and starts up the generator if the utility power remains absent. In about five to ten seconds, when the generator is producing full power, the transfer switch disconnects the load from the utility and connects it to the generator, restoring electricity to the load. The transfer switch continues to monitor utility power, and when it is restored, switches the load from the generator back to the utility. Once the generator is disconnected, it goes through a cool-down routine and shut down automatically.
