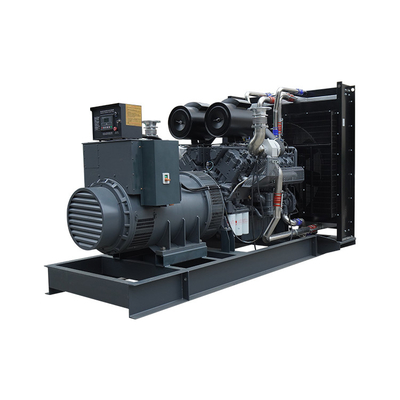

VDE0875-N 600 Kw Perkins Diesel Generator Set 750kva Electric Power Unit

SHX 600kw Perkins Diesel Generator Set 750kva Generator Power Unit Electric Generator



Manufacturing Standards:

ISO8528; ISO1105; ISO3046; GB/T2820; GB755; BS5000; NEMAMG-22; YD/T502



Electrical Parameters
Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of VDE0875-N and ISO8528



Specification of 600kw Perkins diesel generator set

Genset model	SPF825
Genset rated power	600KW/750KVA
Rated voltage	400/230V (adjustable)
Rated current	1080 Amps
Frequency	50 Hz
Power factor	0.8 Lagging
Connecting type	3 phase 4 wire
Cooling system	Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm	4500×1900×2200
Gross weight (kg)	6000
Diesel Engine
Brand	Perkins
Model	4006-23TAG2A
Engine type	6 cylinders in line,4 stroke, air-to-air after-cooled
Aspiration	Turbocharged
Rotating speed	1500 RPM
Engine cooling system	Water-cooled
Speed governing system	Electronic speed governor
Starting method	By 24V batteries
Engine filter system	Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L)	23
Bore×Stroke(mm)	160×190
Compression ratio	13.6: 1
100% Load fuel consumption (g/kw.h)	≤209
Lube capacity(L)	113.4
Alternator
Brand	Farrand
Model	FLD634B
Excite type	Brushless self-excited AVR regulation
Connecting type	3 phase 4 pole
Steady frequency change	0.50%
No load voltage	≥95%-105%
Steady voltage	≤±1%
Insulation class	Class H
Protection grade	IP23
The components of the genset
(1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame.





Control Function
Key start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output
Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.





SCOPE OF SUPPLY

1. DIESEL ENGINE

1.1 Engine which includes wet type cylinder, direct injection combustion chamber, exhaust turbocharger, water cooling, electronic governor, etc.

1.2 Fuel system, which includes, fuel pump, strainers or filters, etc.

1.3 Air intake and exhaust system, which includes air filter, exhaust silencer, bellow, all intake and exhaust piping, cablings, instruments, valves and settings, etc.

1.4 Cooling system, which includes radiator with water level alarm and indicator, thermostatic switch, thermostatic heater, engine shaft mounted fan, all interconnecting piping, cablings, instruments, valves and settings, etc.

1.5 Lubricating system includes pumps, oil sumps, oil strainers and filters, all interconnecting piping, instruments, valves and settings, etc.

1.6 Starting system, which includes 2 sets of batteries, a set of AC charger, and interconnecting piping, cablings, instrument, valves and settings, etc.

2. AC SYNCHRONOUS GENERATOR

2.1 Generator, which includes exciter, rectifier, AVR, shaft mounted fan if required.

2.2 All interconnecting piping, cablings, instruments, valves and settings, etc.

3. COUPLINGS AND GUARD

3.1 Coupling

3.2 Coupling Guard

4. CONTROL PANEL

4.1 Local automatic control panel

5. BASEPLATE

5.1 Common base plate

6. DOCUMENTS

6.1 Generator Set Installation Manual

6.2 Generator Set Operation and Maintenance Manual

6.3 Generator Set Control Panel Manual

6.4 Engine Manual and Quality File

6.5 Alternator Manual and Quality File

6.6 Factory Acceptant Test Report

6.7 Relative Drawings and Diagrams.
