Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO, CE, Soncap, EPA |
| Model Number: | SCF-440 |
| Minimum Order Quantity: | 1 set |
| Price: | USD 30000-50000/SET |
| Packaging Details: | Plyfilm or plywood |
| Delivery Time: | 25 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 Sets per Month |
| Rated Voltage: | 400/230V | Frequency: | 50Hz Or 60Hz |
|---|---|---|---|
| Rated Power: | 400kva 320kw | Output Type: | AC Three Phase |
| Options: | Silent Canopy/trailer/ATS/Fuel Tank | Color: | Customers' Requirement |
| High Light: | 4 Wires Cummins 400kva Generator,3 Phases Cummins 400kva Generator,Low Fuel Consumption Diesel Generator |
||

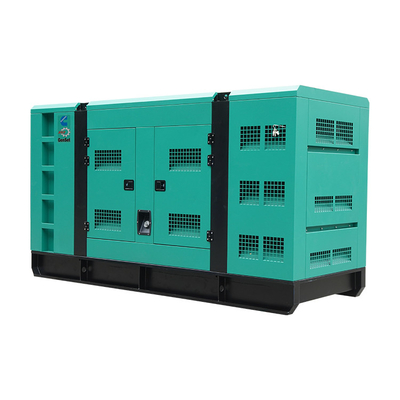

SHX 400kva Cummins Diesel Generator Set Low Fuel Consumption Diesel Generator
Genset Standard Configuration:
1. Powered by famous brand diesel engine and coupled with famous brand alternator;
2. Install protective device: Radiator fan and water tank radiator.
3. Control Module: Smartgen, Deepsea, ComAp;
4. Equipped with battery charger and 24Vhigh performance maintenance-free lead-acid starting batteries and connecting cables.
5. Breaker: MCCB
6. Built-in shock pad;
7. Exhaust Silencer : Externally at the top of generator set and extended outside the building;
8. Firm, durable, high-strength frame;
9. Instruction manual of generator set, test report, etc.
10. Documents for machine: Original technical documents of diesel engine and generator, instruction manual of generator set, test report, etc.
|
Prime Power
|
288KW/360KVA
|
|
Standby Power
|
320KW/400KVA
|
|
Rated Speed
|
1500rpm/1800rpm
|
|
Rated Voltage
|
400V
|
|
Rated Current
|
577A
|
|
Rated Frequency
|
50Hz/60Hz
|
|
Model of Connection:
|
3 phases 4 wires
|
|
Stabilized Voltage Regulation
|
≤±0.5%
|
|
Instantaneous Voltage Regulation
|
≤±15%
|
|
Voltage Fluctuation
|
≤±0.5%
|
|
Voltage Recovery Time
|
≤1s
|
|
Starting Method
|
24V DC electric starting
|
|
Noise Level (LP7M)
|
≤99 Db
|
|
Brand
|
Stamford/Farrand/Leroy-somer
|
|
Engine Model
|
as the brand needed
|
|
Power Factor
|
0.8
|
|
Governor Type
|
Brushless
|
|
Insulation Class
|
H
|
|
Winding Pitch
|
2/3-(N°6)
|
|
Protection Grade
|
IP23
|
|
Over-speed Capacity
|
2250min-2
|
|
Stabilized Voltage Regulation
|
±0.5%
|
|
Short-circuit Current Capacity
|
300%(3 multiple):10s
|
