Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO, CE |
| Model Number: | SPF1375 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 150 sets per year |
| Genset Type: | Soundproof | Engine: | Perkins |
|---|---|---|---|
| Alternator: | Farrand / Stamford / Leroy Somer | Controller: | Smartgen / Deepsea |
| Starting Method: | By Batteries | Aspiration: | Turbocharged |
| High Light: | 1250kva Perkins Diesel Generator Set,Turbocharged Perkins Diesel Generator Set,1 Megawatt Emergency Genset |
||

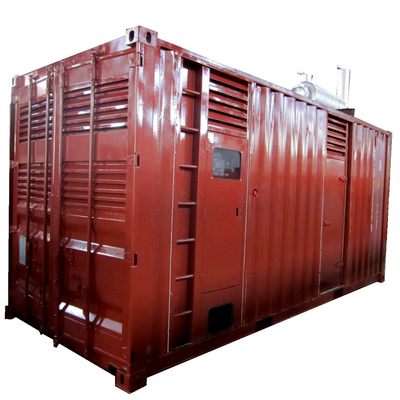

SHX 1250kva Perkins Diesel Generator Set 1 Megawatt Generator Emergency Power Generator
Special Type Generator Set
1) Acoustic Enclosure Generator Set
2) Containerized Generator Set
3) Trailer-Mounted Generator Set
4) Mobile Generator Set (Truck Mounted)
Genset specifications
| Genset model | SPF1375 |
| Genset rated power | 1000KW/1250KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 1800 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 6096×2438×2591 |
| Gross weight (kg) | 13000 |
| Diesel Engine | |
| Brand | Perkins |
| Model | 4012-46TWG2A |
| Engine type | 12 cylinders in Vee,4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 45.84 |
| Bore×Stroke(mm) | 160×190 |
| Compression ratio | 13.6: 1 |
| Fuel consumption (g/kw.h) | ≤211 |
| Lube capacity(L) | 177 |
| Alternator | |
| Brand | Farrand |
| Model | FLD634G |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame. | |
Product Advantages
1) Low exhaust gas
2) Independent fuel direct gush-oil system
3) Low fuel consumption
4) Steady performance
5) Good power-weight ratio
6) Small, compact structure, beautiful appearance
7) Easy to facilitate installation, easy to maintenance
Some Special Features :
Given below are some the special features of DG sets marketed by us.
· Compact, sleek, manual/automatic
· Sound proof and weather proof enclosure
· Confirms to statutory Government noise level norms
· Enclosure is of modular construction with provision to assemble and dismantle easily
· Fuel tank is provided with breather and drain plugs for filling and draining diesel from outside the enclosure
· Fuel level is indicated with the help of fuel gauge meter
· Drain plugs provided outside the enclosure for draining mobile oil
· Battery is provided in a tray inside the enclosure
· Doors have high quality gaskets to avoid leakage of sound
· Sound proofing of enclosure is done with high quality foam, which is further covered with fiberglass sheet and perforated powder coated sheet.
