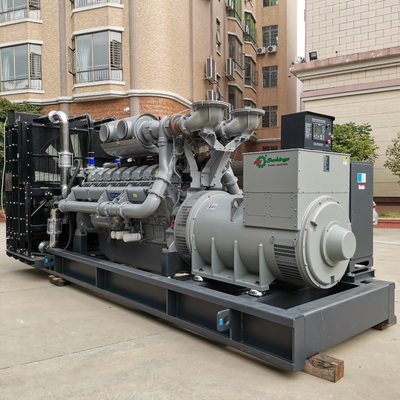

SHX 1600kw Perkins Diesel Generator Set 2000kva Emergency Standby Genset

SHX 1600kw Perkins Diesel Generator Set 2000kva Perkins Genset Emergency Standby Power



Standard Configuration of Diesel Generator Set Powered by Perkins Engine:

1) Perkins engine

2) Farrand alternator (Marathon, Stamford, Leroy Somer brand for option)

3) Deepsea DSE6020 control panel

4) Chint circuit breaker

5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)

6) Anti-Vibration Mounted System

7) Battery, battery charger and battery isolator switch

8) Industrial silencer and flexible exhaust hose



Specification of 1600kw Perkins diesel generator set

Engine	Perkins 4016TAG2A	Alternator	Farrand FLD734E
Prime Power	1600KW / 2000KVA	Standby Power	1760KW / 2200KVA
Output Type	AC Three Phase	Frequency	50Hz / 1500RPM
Cooling System	Closed Cycle Water Cooled	Control System	Deep Sea 6020
Voltage	230/400V	Circuit Breaker	3 Pole MCCB
Voltage Regulation	AVR	Starting Method	By batteries
Color	White, Yellow, Green Etc.	Speed Governing	Electric





Product Advantages

1) Low exhaust gas

2) Independent fuel direct gush-oil system

3) Low fuel consumption

4) Steady performance

5) Good power-weight ratio

6) Small, compact structure, beautiful appearance

7) Easy to facilitate installation, easy to maintenance





SCOPE OF SUPPLY

1. DIESEL ENGINE

1.1 Engine which includes wet type cylinder, direct injection combustion chamber, exhaust turbocharger, water cooling, electronic governor, etc.

1.2 Fuel system, which includes, fuel pump, strainers or filters, etc.

1.3 Air intake and exhaust system, which includes air filter, exhaust silencer, bellow, all intake and exhaust piping, cablings, instruments, valves and settings, etc.

1.4 Cooling system, which includes radiator with water level alarm and indicator, thermostatic switch, thermostatic heater, engine shaft mounted fan, all interconnecting piping, cablings, instruments, valves and settings, etc.

1.5 Lubricating system includes pumps, oil sumps, oil strainers and filters, all interconnecting piping, instruments, valves and settings, etc.

1.6 Starting system, which includes 2 sets of batteries, a set of AC charger, and interconnecting piping, cablings, instrument, valves and settings, etc.

2. AC SYNCHRONOUS GENERATOR

2.1 Generator, which includes exciter, rectifier, AVR, shaft mounted fan if required.

2.2 All interconnecting piping, cablings, instruments, valves and settings, etc.

3. COUPLINGS AND GUARD

3.1 Coupling

3.2 Coupling Guard

4. CONTROL PANEL

4.1 Local automatic control panel

5. BASEPLATE

5.1 Common base plate

6. DOCUMENTS

6.1 Generator Set Installation Manual

6.2 Generator Set Operation and Maintenance Manual

6.3 Generator Set Control Panel Manual

6.4 Engine Manual and Quality File

6.5 Alternator Manual and Quality File

6.6 Factory Acceptant Test Report

6.7 Relative Drawings and Diagrams.
