Place of Origin: | China |
---|---|
Brand Name: | SHX |
Certification: | ISO, CE, Soncap, EPA |
Model Number: | SCF-900 |
Minimum Order Quantity: | 1 set |
Price: | USD 50000-80000USD |
Packaging Details: | Plyfilm or plywood |
Delivery Time: | 25 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 20 Sets per Month |
Rated Voltage: | 110/220v, 220/380v, 230/400v | Frequency: | 50/60HZ |
---|---|---|---|
Output Type: | AC Three Phase | Alternator: | SLG/Stamford/Marathon/Meccatle/Leroy-somer |
Warranty: | 12 Months/1000 Hours | Control Panel: | LCD Digital Display |
Highlight: | 400V 900 Kva Cummins Generator,230V 900 kva cummins generator,LCD Control Generator for Hospital |

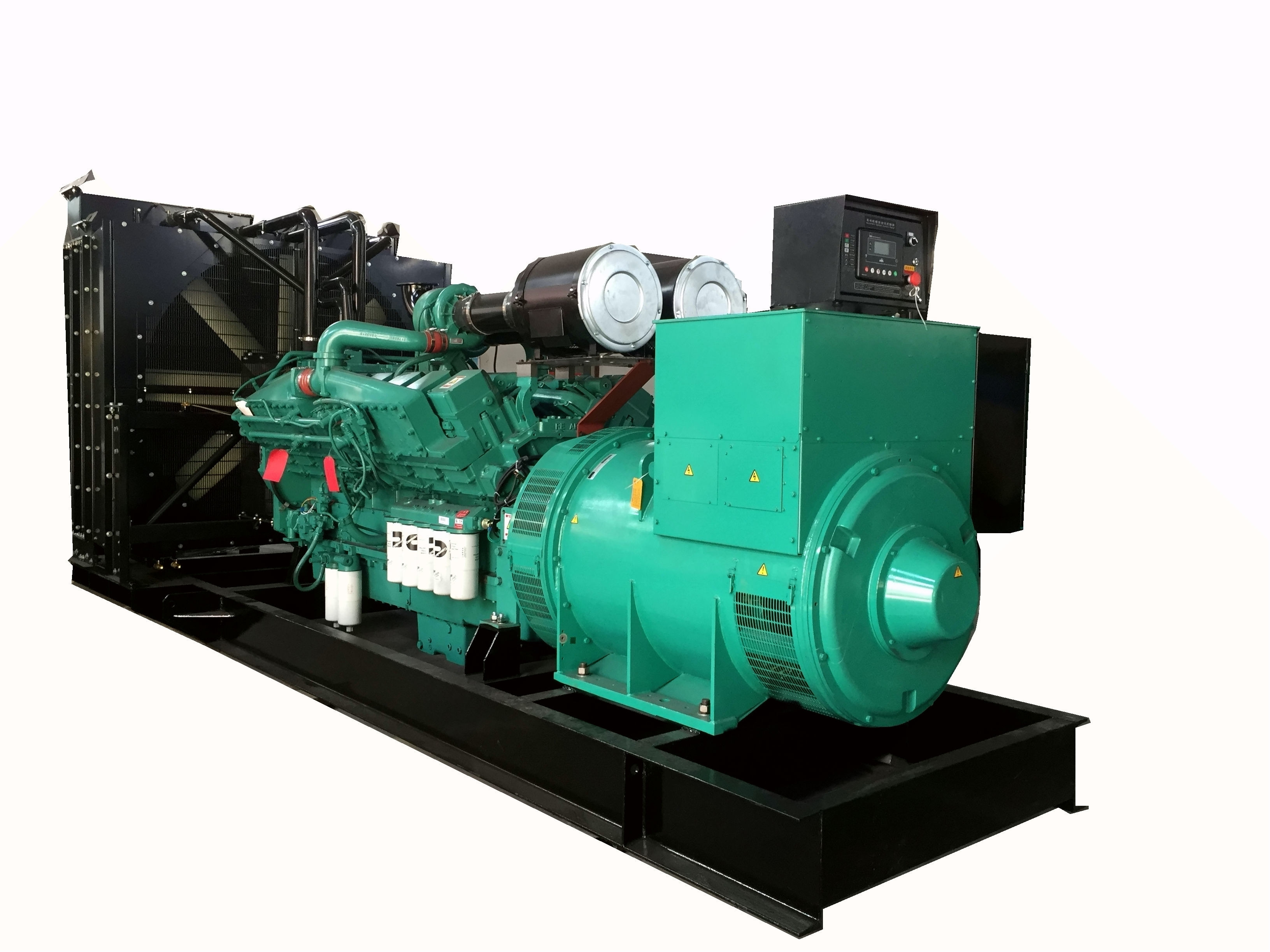

SHX 900kva Cummins Diesel Generator Set Hospital Use Generator Power Plant
Model
|
Voltage
|
HZ
|
P.F
(COS) |
Prime power
|
SCF-900
|
230/400V
|
60Hz/50HZ
|
0.8
|
900kva/720kw
|
Engine Model
|
KTA38-G2
|
Number of Cylinders
|
12cylinders
|
Cycle
|
4 stroke
|
Aspiration
|
Turbocharged and after water cooled
|
Bore×Stroke
|
159mm x159mm
|
Displacement
|
38L
|
Fuel Consumption at 100% Load
|
207g/kw.h
|
Starter Motor
|
DC24V,
|
Alternator
|
Stamford /Marathon /Leroysomer /Farrand
|
Prime power
|
720kw
|
Frequency/speed
|
50/60Hz
|
Exciter type
|
Brushless
|
Power factor
|
0.8
|
Voltage adjust range
|
≥±5%
|
Voltage regulation NL-FL
|
±0.5%
|
Insulation Grade
|
H
|
Protection Grade
|
IP23
|
Phase
|
Three phase
|
Smartgen control panel data
|
|
Controller Brand
|
Deepsea /ComAp /Smartgen
|
Controller Display
|
Output frequency
Engine speed Battery voltage Engine run-time (Hours)
Note: 1. The engine coolant temperature displayed by water temperature gauge 2. The engine oil pressure displayed by oil pressure meter 3. Generator current displayed by current meter, to change switch for each phase displayed separately |
Generator Set
|
Fuel System
|
Control system
|
Alternator
|
Low environment temperature
|
8h/12h/24hours fuel tank
|
AMF function
|
PMG excitation
|
Water heater
|
|
Dual wall base fuel tank
|
ATS
|
Space heater
|
Oil heater
|
|
Outside fuel tank
|
Multiple generator automatic synchrorising
|
|
Battery heater
|
We meet the different needs for the power generators market sectors. Power generators range from 10kva to 3000 kVA as high speed engines (1800 RPM or 1500 RPM) , also we provides the customer with the full solutions for his needs such as electrical panels (ATS, Synchronization panel, MDB) and all of the panels are built by SUNKINGS power within our facility, also other solution for gensets accessories are available, such as fuel tanks and fuel system, additional to that we are providing full solution for our customer by turn key solution, supplying and installing the gensets and all of the required accessories to customer site.
Services
We provide integrated engineering services to our customers from initial designs to final accreditation. We also provide after sales support and spare parts.
Please feel free to get in touch with us to learn more about our overall offerings or specific inventory items. Let us know what you’re looking for, and we’ll help you find a fit among our offerings or discuss alternatives. Whatever you need, we’re here to help.
