Place of Origin: | China |
---|---|
Brand Name: | SHX |
Certification: | ISO, CE, Soncap, EPA |
Model Number: | SCF-1000 |
Minimum Order Quantity: | 1 set |
Price: | USD 60000-80000USD |
Packaging Details: | Plyfilm or plywood |
Delivery Time: | 25 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 15 Sets per Month |
Frequency: | 50/60HZ | Speed: | 1500/1800rpm |
---|---|---|---|
Rated Power: | 1000kva | Output Type: | AC Three Phase |
Warranty: | 12 Months/1000 Hours | Type: | Silent/Open/Trailer/Canopy/Container |
Highlight: | Container Cummins Diesel Generator Set,415V Cummins Diesel Generator Set,Super Silent 1000 Kilowatt Generator |

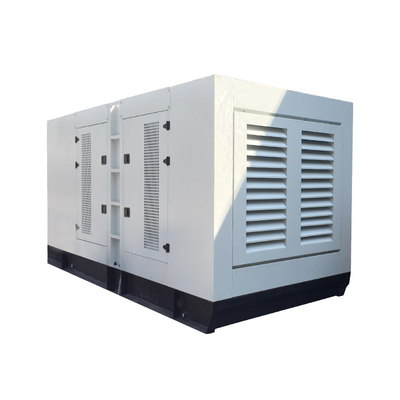

SHX 1000kw Cummins Diesel Generator Set Container Size Generator Super Silent Generator
Feature of the Container Size Generator
The container cover is designed in accordance with the standard container height, which meets the requirements of ISO9001, GB/T1413, GB/T1992 and other national standards. It has CSC certification in accordance with the international container safety convention.
The container is of fully-welded structure, with high strength and impact resistance inside, and the outer profile structure is
the same as the general container, which is easy to lift and transport.
The surface of the container is made of high hardness, rustproof polyurethane paint, and the bottom, middle and surface three
layers of painting technology, corrosion resistance and rust resistance is very strong, no need to build a machine room, can be
used in the open air
General
|
Prime power
|
1000kva/800kw
|
Standby power
|
1100kva/880kw
|
|
Frequency
|
50Hz
|
|
Rated speed
|
1500r/min
|
|
Rated Voltage
|
380/400/415V
|
|
Factor
|
0.8
|
|
Length
|
6058mm
|
|
Width
|
2450mm
|
|
Height
|
2600mm
|
|
Gross Weight
|
10202kg
|
|
Engine
|
Model
|
KTA38-G5
|
Manufacturer
|
CUMMINS
|
|
Number of cylinders
|
12
|
|
Aspiration
|
Turbocharged and Aftercooled
|
|
Cooling
|
Water-cooling
|
|
Displacement
|
38L
|
|
Bore & Stroke
|
159mm X 159mm
|
|
Compression Ratio
|
14.5:1
|
|
Prime/standby power
|
647kW/711kW
|
|
Dry weight
|
4457kg
|
|
Governor
|
Electronic
|
|
100% standby power fuel consumption
|
187L/h
|
|
100% prime power fuel consumption
|
167L/h
|
|
75% prime power fuel consumption
|
129L/h
|
|
50% prime power fuel consumption
|
86L/h
|
|
Alternator
|
Model
|
|
Manufacturer
|
Stamford
|
|
Rated power
|
600kW/750kVA
|
|
Insulation class
|
H
|
|
Protection
|
IP23
|
|
Ambient temperature
|
40℃
|
|
Altitude
|
≤1000m
|
|
Overspeed
|
≤2250rpm
|
|
Phases
|
3
|
|
Winding pitch
|
2/3
|
|
No. of Bearing
|
1
|
|
Poles
|
4
|
