Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SCF688 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine: | Cummins | Alternator: | Farrand / Leroy Somer / Stamford |
|---|---|---|---|
| Controller: | Smartgen / Deepsea | Protection Grade: | IP23 |
| Alternator Material: | 100% Copper | Exicted Type: | Self Excited |
| High Light: | 625kva Electric Diesel Generators,Closed Cycle Water Cooled Generator,Water Cooled Cummins 500kw Generator |
||

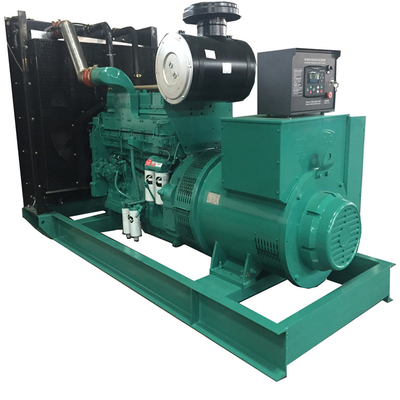

SHX 625kva Electric Diesel Generators 500kw Cummins Diesel Engine Generator Set
Advantages of diesel generator set powered by Cummins engine:
1.Reliable Performance:
Reliable performance is the major advantage of SHX products, which is based on the outstanding design in every aspect and strict QC system.
2.Customer First:
We devote ourselves to develop products to meet customer’s requirements. Our engineers develop and design new products for customers.
3. Technical Support and Service:
Our engineer team will solve your technical problems within 48 hours.
4.Strict test process before ex-factory:
Every product will be tested twice before ex-factory, free load and under load, all products are 100% ex-factory pass rate.
5.Certification: ISO9001:2015, TUV etc.
Specification of 625kva diesel generator set
| Genset model | SCF688 |
| Genset rated power | 500KW/625KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 900 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 3300×1250×1850 |
| Gross weight (kg) | 4500 |
| Diesel Engine | |
| Brand | CUMMINS |
| Model | KTAA19-G6A |
| Engine type | 6 cylinders in line,4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 19 |
| Bore×Stroke(mm) | 159×159 |
| Compression ratio | 13.0: 1 |
| Fuel consumption (l/h) | ≤206 |
| Lube capacity(L) | 38 |
| Alternator | |
| Brand | Farrand |
| Model | FLD544FS |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame. | |
General features:
■ Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking; and proving of all control and safety shut-down functions;
■ 24V DC start motor;
■ Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;
■ Equipped with industrial silencer and flexible exhaust hose;
■ Designed to Comply with ISO8528/GB2820.
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to customer’s requirement.
4. Full warranty cover to support the customers.
