Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO, CE, Soncap, EPA |
| Model Number: | SCF-1000 |
| Minimum Order Quantity: | 1 set |
| Price: | USD 60000-80000USD |
| Packaging Details: | Plyfilm or plywood |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 Sets per Month |
| Rated Voltage: | 400/230V,220V / 380V | Frequency: | 50/60HZ |
|---|---|---|---|
| Speed: | 1500/1800rpm | Output Type: | AC Three Phase |
| Warranty: | 12 Months/1000 Hours | Cooling System: | Water Cooled |
| High Light: | 900kw Cummins Diesel Generator Set,0.8COS Cummins Diesel Generator Set,Heavy Duty Electricity Power Generator |
||

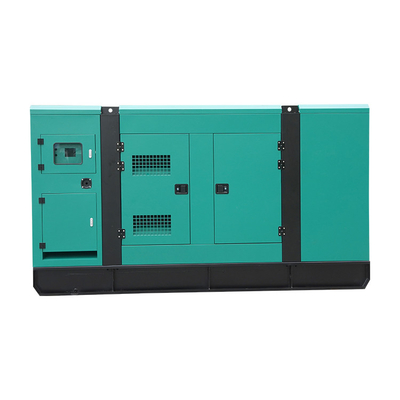

SHX 900kw Cummins Diesel Generator Set Heavy Duty Electricity Power Generator
| Genset Technical Data | |
| Genset Model | SCF-1200 |
| Rated Voltage | 380/220V(Can be adjusted) |
| Rated Frequency | 50HZ |
| P.F(COS) | 0.8 |
| Prime Power | 1125KVA |
| Standby Power | 1200KVA |
| Cummins Engine Data | |
| Engine Model | KTA50-G3 |
| Number of Cylinders | 16 cylinders, 60° Vee |
| Aspiration | Turbocharged |
| Bore×Stroke | 159mm x159mm |
| Displacement | 50.3L |
| Compression ratio | 13.9:1 |
| Prime Power/Speed | 1097KW / 1500rpm |
| Standby Power/Speed | 1297KW / 1500rpm |
| Speed Governor | electrical |
| Cooling System | Forced water cooling cycle |
| Fuel Consumption at 100% Load | 204g/kw.h@1500rpm |
| Alternator Data | |
| Optional brands | Stamford/Leroy Somer/Marathon |
| Standby power | 1125KVA |
| Frequency/speed | 50Hz/1500rpm |
| Exciter type | Single bearing, Brushless, Self-excited with AVR |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Control Panel | |
| Optional brands | Deespea/Smartgen/ComAp |
Powered by Cummins KTA50-G3 oem factory price prime 1200kva diesel generator open type
Company Introduction
Our company specialized in the sales and maintenance of imported diesel generator set, generator set accessories, generator set consumables and varioud generator set related projects. The company's main products are Cummins generator set, Volvo generator set, Perkins generator set, weichai generator set and so on. The business projects includes sales of new diesel generator (power range from 10kva-2500kva) maintenance, noise elimination design and installation of generator, water cooling project of diesel generator and automatic starting project of generator, ATS. And provide a variety of imported diesel engine accessories, consumables, etc.
