Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SHX-2000 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Genset Type: | Open Type | Engine Brand: | Cummins |
|---|---|---|---|
| Alternator Brand: | Leroy Somer | Controller: | Deepsea |
| Aspiration: | Turbocharged And Intercooled | Cooling System: | By Radiator |
| High Light: | 2000kw Diesel Generator 4.16kv,2000kw Diesel Generator 2500 Kva,2500Kva High Voltage Generator Set |
||

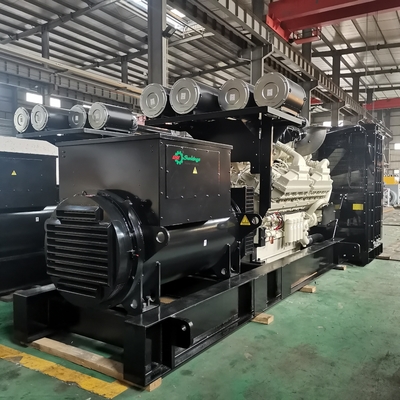

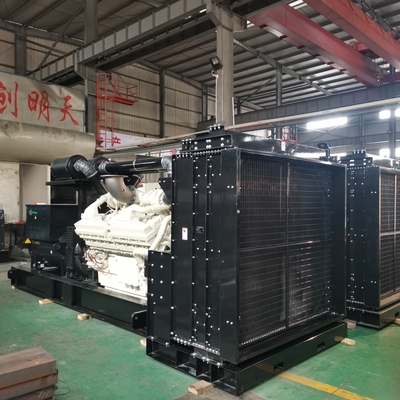

SHX 2000kw Backup Diesel Generator 60Hz 4.16kv 2500kva High Voltage Generator Set
Description of 2000kw diesel generator set:
1. Prime power: 2000kw / 2500kva
2. Engine: Original Cummins engine
3. Alternator: Genuine Leroy Somer
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. Type: Open type
6. Color: Can be customized
Specification of 2000kw diesel generator set
| Engine | Cummins QSK60-G7 | Alternator | Leroy Somer LSA52.2XL804P |
| Prime Power | 2000KW / 2500KVA | Standby Power | 2200KW / 2750KVA |
| Output Type | AC Three Phase | Frequency | 60Hz / 1800RPM |
| Cooling System | Closed Cycle Water Cooled | Control System | Deep Sea 8610 |
| Voltage | 4160V | Circuit Breaker | 3 Pole MCCB |
| AVR | D550 | Starting Method | By batteries |
| Color | White, Yellow, Green Etc. | Fuel System | Electronic injection |
Continuous Generator
These generators operate year-round and are usually located in areas far away from the power grid or near industrial and mining enterprises to meet the needs of construction, production and domestic electricity.
At present, in the area with more developed economy, because the construction of electric power network is less than the power demand of users, the commonly used diesel generator set with short construction cycle is set up to meet the needs of users.
This type of generator has a relatively large capacity, provides continuous power supply for unsteady loads, has no limit on the duration of continuous operation, and allows one hour of over-load power supply for a period of 12 hours.
The overload capacity is 10% of the rated output power of diesel generator set. Because of its long running time and heavy load, the allowable power relative to the limit power of this unit is set to a lower point.
| Standard Equipment | Optional Equipment |
|
1. Diesel engine 2. Alternator 3. Digital control panel 4. Steel base frame 5. Output circuit breaker 6. 40 ℃ water-cooled radiator 7. Starting batteries and batteries connect wires 8. Silencer and flexible exhaust hose |
1. Silent canopy 2. Super silent canopy 3. Rainproof canopy 4. Trailer silent canopy 5. Container silent canopy 6. Container rainproof canopy 7. ATS 8. Oil water separator 9. 50 ℃ water cooled radiator 10. Water heater 11. Oil heater 12. Automatic paralleling control system |
Advantages of Diesel Generator Set Powered by Cummins Engine:
1. International Warranty Service
2. With ISO9001&CE certification
3. Spare parts are easy to get from worldwide market with much cheaper price
4. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Farrand alternator
5. Perfect after-service network
6. Both 50Hz and 60Hz
7. Rigorous test including 50% load,75% load,100% load and 110% load
8. Short delivery time
