Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO, CE, Soncap, EPA |
| Model Number: | SCF-750 |
| Minimum Order Quantity: | 1 set |
| Price: | USD 40000-80000USD |
| Packaging Details: | Plyfilm or plywood |
| Delivery Time: | 25 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 Sets per Month |
| Speed: | 1500/1800rpm | Output Type: | AC Three Phase |
|---|---|---|---|
| Alternator: | SLG/Stamford/Marathon/Meccatle/Leroy-somer | Warranty: | 12 Months/1000 Hours |
| Engine: | Powered By Cummins | Control Panel: | LCD Digital Display |
| Highlight: | KTAA19 G6A Cummins Diesel Generator Set,600kw Cummins Diesel Generator Set,Open Type Generator Mining Machinery |
||

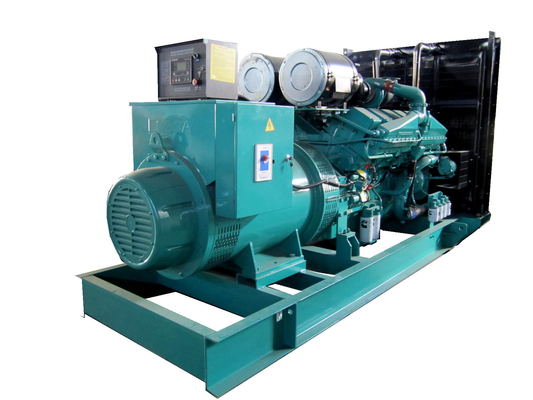

SHX 600kw Cummins Diesel Generator Set Open Type Generator Mining Machinery
Generator Specification:
Engine Data:
|
Engine model |
KTAA19-G6A |
|
Engine manufacturer |
Cummins |
|
Number of Cylinders |
6Cylinders in line |
|
Cycle |
4Stroke |
|
Aspiration |
Natural |
|
Bore×Stroke |
159mm x 159mm |
|
Prime power |
500KW |
|
Standby Power |
600KW |
|
Steady speed droop |
≤1% |
|
Governor |
Mechanical |
|
100% Prime power fuel Consumption |
204g/kwh |
|
Dimension(mm) |
3540:1500:2055 |
|
Displacement |
19L |
|
Current |
1020A |
|
Cooling System |
Water cooled |
|
Starter Motor |
DC12V |
|
Alternator |
DC12V |
Alternator Data:
|
Alternator Model |
Stamford |
|
Prime power |
690KVA |
|
Frequency/speed |
60HZ/1800rpm |
|
Exciter type |
Single bearing, Brushless, Self-excited |
|
Power factor |
0.8 |
|
Voltage adjust range |
≥5% |
|
Voltage regulation NL-FL |
≤±1% |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
|
Phase |
Three phase |
Control Panel Data:
|
Model |
DeepSea/SmartGen/ComAp |
|
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
DeepSea DSE6120, DSE7320, DSE8610, DSE8810 SmartGen HGM6110N, HGM6120N, HGM9510 ComAp MRS10, MRS16, IC-NT
|
SUNKINGS GENERATORS, PROFESSIONAL POWER SOLUTION.
Guangdong Sunkigns Electric Co.,Ltd which is one of the largest diesel generator set manufacturers in China mainland. Until now, Sunkings has been exported to more than 80 countries and regions and have got a lot of praise from our customers.
Our production capacity amounts to 5000 sets per year. We are specialized in making 20kva to 2500kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equiped with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, ENGGA...Our generator mainly use DEEPSEA and SMARTGEN control panel. According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.
Any needs in land emergency, backup and primary electric power, low voltage and high voltage use, please don't hesitate to contact us.
