Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SCF275B |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Farrand / Leroy Somer / Stamford |
|---|---|---|---|
| Controller: | Smartgen / Deepsea | Frequency: | 50Hz |
| Voltage: | 400/230V | Output Type: | 3 Phase 4 Wire |
| High Light: | 275kva Backup Diesel Generator,Small 220kw diesel generator,275kva Diesel Generator Silent |
||

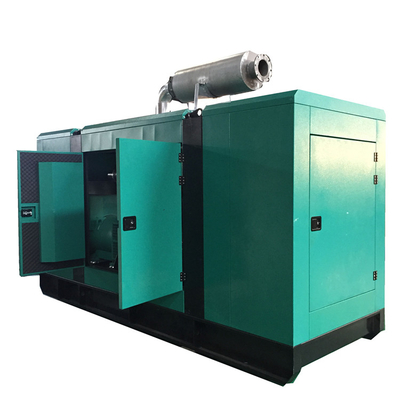

SHX 275kva Backup Diesel Generator 220kw Diesel Standby Generator Silent Genset
Advantages of diesel generator with Cummins engine
1) Low exhaust gas
2) Independent fuel direct gush-oil system
3) Low fuel consumption
4) Steady performance
5) Good power-weight ratio
6) Small, compact structure, beautiful appearance
7) Easy to facilitate installation, easy to maintenance
Technical specification of 275kva backup diesel generator
| Genset model | SCF275B |
| Genset rated power | 200KW/275KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 360 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with radiator |
| Overall dimension (L×W×H) mm | 4200×1400×2100 |
| Gross weight (kg) | 2800 |
| Diesel Engine | |
| Brand | CCEC CUMMINS |
| Model | NT855-GA |
| Engine type | 6 cylinders in line, 4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 14 |
| Bore×Stroke (mm) | 140×152 |
| Compression ratio | 15: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤201 |
| Lube capacity (L) | 36 |
| Alternator | |
| Brand | FARRAND |
| Model | FLD274K |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame. | |
Supply Scope of silent generator
1.Standard tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
2.Brand-new engine, with start motor.
3.Brand new brushless alternator, single bearing, flange connection, IP21-23, H insulation class, with AVR.
4.Auto control panel, with LCD display.
5.Engine mounted battery-charging alternator.
5.Circuit Breaker, Exhaust Silencer
6.Radiator for 40°C ambient temperature and double-deck cooling, with fan guard and front guard.
7.Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset running under stabilization.
8.Skid-mounted bottom Fuel tank - 8hrs continuous running for choice (bigger fuel tank by your demand under extra cost)
9.External recessed emergency stop button for extra safety
10.The colors & Brands by your requests
11.Optional choice: ATS (automatic transfer switch), battery charger of mains supply, fuel-water separator, water heater and oil heater ( depends on using environment),fuel filter, oil filter, water filter and air filter, Parallel system for your choice.
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
