Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SCF316 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Farrand / Leroy Somer / Stamford |
|---|---|---|---|
| Controller: | Smartgen / Deepsea | Materials: | 100% Copper |
| Speed Governing: | Electronic | Voltage Regulator: | AVR |
| High Light: | CCEC Cummins Electric Diesel Generators,Electric Diesel Generators 288kva,230kw 3 Phase Soundproof Genset |
||

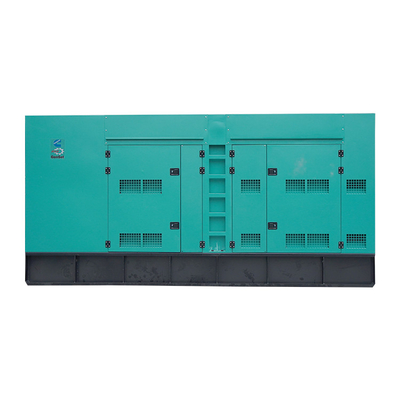

SHX Electric Diesel Generators 230kw 3 Phase Soundproof Genset 288kva Automatic Generator
Features of 230kw electric diesel generator
1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy
Technical specification
| Genset Model | SCF316 |
| Prime Power | 230KW/288KVA |
| Standby Power | 253KW/316KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 414A |
| Genset Structure | Soundproof type |
| Dimension | 4200×1400×2100mm |
| Net Weight | 2750KG |
| Noise level | 75dB at 7 meters |
| Fuel Tank Capacity | 8 hours base fuel tank |
| Engine Model | CCEC Cummins NTA855-G1 |
| Engine Features | 6-cylinder in line, 4 stroke, water cooled |
| Bore * Stroke | 140mm × 152mm |
| Displacement | 14L |
| 12-hour Power (kw) | 253KW/1500 |
| Fuel Consumption (g/kw.h) | 201 |
| Compression Ratio | 14.5:1 |
| Governor type | Electronic |
| Alternator Model | Farrand / FLD444D |
| Excitation Mode | Brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |

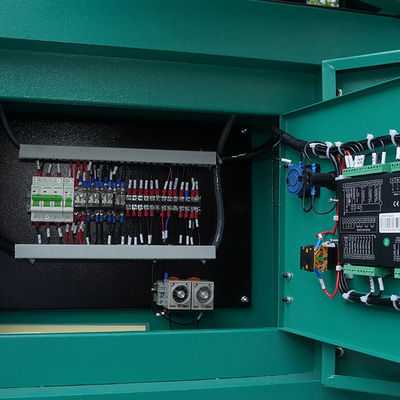

| Smartgen 6110 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Why choose Cummins powered gensets?
1. Cummins engines which are made in China with the same standard of the US Cummins keep the quality almost the same as the US Cummins.
2. More than 90% of the Engines components and spares are made in China which keeps the cost much lower.
3. Cummins engines are universally just as Cummins factories all around the world; all the spares are universal which make the maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right near your house.
5. Engineers are more familiar with Cummins engines because they are most widely use in every filed and everywhere around the world.
Automatic Transfer Switch (ATS)
Automatic Transfer Switches are an integral part of the power generation process, which allows smooth and immediate transfer of electrical current between multiple sources and the load. When the generator is operating, the transfer switch prevents dangerous feedback of current to the utility’s system. It also ensures that different power sources are fully synchronized before their power is combined or loads are transferred, which is imperative for safe operation.
The transfer switch senses when utility power is interrupted, and starts up the generator if the utility power remains absent. In about five to ten seconds, when the generator is producing full power, the transfer switch disconnects the load from the utility and connects it to the generator, restoring electricity to the load. The transfer switch continues to monitor utility power, and when it is restored, switches the load from the generator back to the utility. Once the generator is disconnected, it goes through a cool-down routine and shut down automatically.
