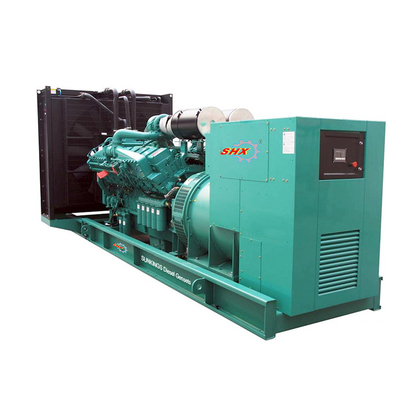

Cummins 1100Kw 1000Kw Diesel Generator Ac 3 Phase Backup Genset For House

SHX 1100 Kw Backup Diesel Generator 1000 Kw Generator 1375 Kva Three Phase Ac Generator



Competitive Advantage of 1100 Kw backup diesel generator:

1. Full power range.

2. All genuine engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.



Detailed specification

Genset model	SCS1375
Genset rated power	1000KW/1250KVA
Rated voltage	400/230V (adjustable)
Rated current	1800 Amps
Frequency	50 Hz
Power factor	0.8 Lagging
Connecting type	3 phase 4 wire
Cooling system	Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm	5800×2280×2500
Gross weight (kg)	11040
Diesel Engine
Brand	CCEC Cummins
Model	KTA50-G3
Engine type	16 cylinders in Vee, 4 stroke, air-to-air after-cooled
Aspiration	Turbocharged
Rotating speed	1500 RPM
Engine cooling system	Water-cooled
Speed governing system	Electronic speed governor
Starting method	By 24V batteries
Engine filter system	Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L)	50
Bore×Stroke(mm)	159×159
Compression ratio	13.9: 1
Fuel consumption (g/kw.h)	≤199
Lube capacity(L)	151
Alternator
Brand	Stamford
Model	LVI634G
Excite type	Brushless self-excited AVR regulation
Connecting type	3 phase 4 pole
Steady frequency change	0.50%
No load voltage	≥95%-105%
Steady voltage	≤±1%
Insulation class	Class H
Protection grade	IP23
The components of the genset
(1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame.





SCOPE OF SUPPLY

1. DIESEL ENGINE

1.1 Engine which includes wet type cylinder, direct injection combustion chamber, exhaust turbocharger, water cooling, electronic governor, etc.

1.2 Fuel system, which includes, fuel pump, strainers or filters, etc.

1.3 Air intake and exhaust system, which includes air filter, exhaust silencer, bellow, all intake and exhaust piping, cablings, instruments, valves and settings, etc.

1.4 Cooling system, which includes radiator with water level alarm and indicator, thermostatic switch, thermostatic heater, engine shaft mounted fan, all interconnecting piping, cablings, instruments, valves and settings, etc.

1.5 Lubricating system includes pumps, oil sumps, oil strainers and filters, all interconnecting piping, instruments, valves and settings, etc.

1.6 Starting system, which includes 2 sets of batteries, a set of AC charger, and interconnecting piping, cablings, instrument, valves and settings, etc.

2. AC SYNCHRONOUS GENERATOR

2.1 Generator, which includes exciter, rectifier, AVR, shaft mounted fan if required.

2.2 All interconnecting piping, cablings, instruments, valves and settings, etc.

3. COUPLINGS AND GUARD

3.1 Coupling

3.2 Coupling Guard

4. CONTROL PANEL

4.1 Local automatic control panel

5. BASEPLATE

5.1 Common base plate

6. DOCUMENTS

6.1 Generator Set Installation Manual

6.2 Generator Set Operation and Maintenance Manual

6.3 Generator Set Control Panel Manual

6.4 Engine Manual and Quality File

6.5 Alternator Manual and Quality File

6.6 Factory Acceptant Test Report

6.7 Relative Drawings and Diagrams
