Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SCF495 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Farrand / Leroy Somer / Stamford |
|---|---|---|---|
| Controller: | Smartgen / Deepsea | Starting Method: | Electrical |
| Cooling System: | Water Cooled | Voltage Regulator: | AVR |
| High Light: | Open Frame Emergency Diesel Generator 50Hz,360kw Emergency Diesel Generator,diesel generator backup power 450kva |
||

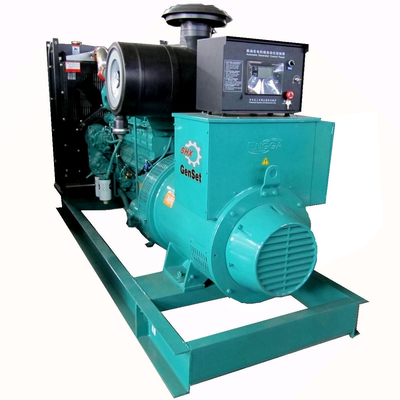

SHX 360kw Backup Diesel Generator 450kva 50Hz Open Frame Emergency Generator
Product description:
1. Power Range: prime power 360kw / 450kva
2. Engine: CCEC Cummins engine
3. Alternator: Genuine Stamford, Leroy Somer, Farrand, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. ATS is optional
6. Type: Open type, Soundproof type, Container type, etc
7. Color: Can be customized
Technical specification:
| Genset model | SCF495 |
| Genset rated power | 360KW/450KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 648 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 3300×1250×1800 |
| Gross weight (kg) | 3000 |
| Diesel Engine | |
| Brand | CCEC Cummins |
| Model | KTA19-G3 |
| Engine type | 6 cylinders in line,4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 19 |
| Bore×Stroke (mm) | 159×159 |
| Compression ratio | 13.9: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤206 |
| Lube capacity (L) | 38 |
| Alternator | |
| Brand | Farrand |
| Model | FLD544C |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame. | |
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
Why choose Cummins powered gensets?
1. Cummins engines which are made in China with the same standard of the US Cummins keep the quality almost the same as the US Cummins.
2. More than 90% of the Engines components and spares are made in China which keeps the cost much lower.
3. Cummins engines are universally just as Cummins factories all around the world; all the spares are universal which make the maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right near your house.
5. Engineers are more familiar with Cummins engines because they are most widely use in every filed and everywhere around the world.
Introduction of Guangdong Sunkings Electric Co., Ltd.
Guangdong Sunkings Electric Co., Ltd has more than 15 years experience in manufacturing and maintenance of diesel generator sets. We mainly manufacture 25-2750KVA Cummins, Perkins, Weichai, Yuchai and Shangchai powered diesel gensets which are all made in China keeps the genset cost much lower than the US or EU or the Japan cost, since the design and all materials are same as original factories, the quality remains almost same as original factories.
