Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SHX-500 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Farrand / Leroy Somer / Stamford |
|---|---|---|---|
| Controller: | Smartgen / Deepsea | Genset Structure: | Open Type |
| Aspiration: | Turbocharged | Control Mode: | Auto / Manual |
| High Light: | Open Type 500kva Diesel Generator,Cummins 500kva diesel generator,550kva 3 Phase Standby Generator |
||

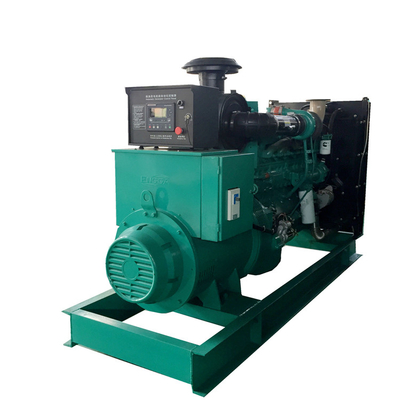

SHX 500kva Electric Diesel Generators 550kva 3 Phase Standby Power Diesel Generator Set
Standard Configuration of Diesel Generator Set Powered by Cummins Engine:
1) Cummins engine
2) Stamford alternator (Marathon, Mecc Alte, Wattek brand for option)
3) Deepsea DSE6020 control panel
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
| 500kva Diesel Generator Set Specification | |
| Model | SHX-500 |
| Genset Prime Power | 450KVA / 360KW |
| Engine | Cummins |
| Engine Model | QSZ13-G3 |
| Engine Type | 6 cylinders in line, 4 Stroke, Water Cooled |
| Alternator | Stamford / Leroy Somer / Farrand / Marathon |
| Voltage Regulation | AVR |
| Controller | Deep Sea / ComAp / Smartgen |
| Warranty | 1 year / 1000 running hours |
| Certificate | CE, ISO |
| Place of Origin | Foshan, China |
| Rated Voltage | 230/400V |
| Frequency | 50/60Hz |
| Rated Current | 720A |
| Cooling Method | Closed Cycle Water-cooled With Radiator |
| Power Factor | 0.8 Lagging |
| Fuel Injection System | ECU |
| Starting System | Electric Start |
Supply scope of 500kva electric diesel generator
1. DIESEL ENGINE
1.1 Engine which includes wet type cylinder, direct injection combustion chamber, exhaust turbocharger, water cooling, electronic governor, etc.
1.2 Fuel system, which includes, fuel pump, strainers or filters, etc.
1.3 Air intake and exhaust system, which includes air filter, exhaust silencer, bellow, all intake and exhaust piping, cablings, instruments, valves and settings, etc.
1.4 Cooling system, which includes radiator with water level alarm and indicator, thermostatic switch, thermostatic heater, engine shaft mounted fan, all interconnecting piping, cablings, instruments, valves and settings, etc.
1.5 Lubricating system includes pumps, oil sumps, oil strainers and filters, all interconnecting piping, instruments, valves and settings, etc.
1.6 Starting system, which includes 2 sets of batteries, a set of AC charger, and interconnecting piping, cablings, instrument, valves and settings, etc.
2. AC SYNCHRONOUS GENERATOR
2.1 Generator, which includes exciter, rectifier, AVR, shaft mounted fan if required.
2.2 All interconnecting piping, cablings, instruments, valves and settings, etc.
3. COUPLINGS AND GUARD
3.1 Coupling
3.2 Coupling Guard
4. CONTROL PANEL
4.1 Local automatic control panel
5. BASEPLATE
5.1 Common base plate
6. DOCUMENTS
6.1 Generator Set Installation Manual
6.2 Generator Set Operation and Maintenance Manual
6.3 Generator Set Control Panel Manual
6.4 Engine Manual and Quality File
6.5 Alternator Manual and Quality File
6.6 Factory Acceptant Test Report
6.7 Relative Drawings and Diagrams
Parallel Control Panel
Parallel control panel enables two or more generator sets, or generator sets and the mains parallel to supply electricity to loads. Parallel control panel box is GGD structure which has manual, semi-auto and auto control.
Manual parallel control panel: Operator analyzes and makes parallel work signal basing on the indicator in the parallel control panel box to parallel generator sets.
With parallel control panel, power supply can be flexible controlled according to power needs.
