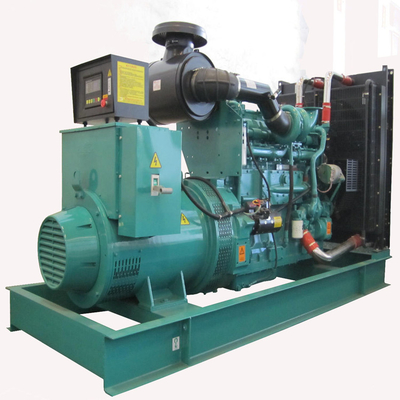

SHX Power Diesel Generator 450kw 563kva Diesel Generator Power Standby Power Source

Special Specifications

1. Frequency: 50/60Hz

2. 3 Phase 4 Wire or 1 Phase 2 Wire

3. Speed: 1500/1800rpm

4. Three Phase Voltage Available: 208V / 220V / 230V / 240V / 380V / 390V / 400V / 415V / 440V / 460V / 480V

Single Phase Voltage Available: 100-250V

Manufacturing Standards:

ISO8528; ISO1105; ISO3046; GB/T2820; GB755; BS5000; NEMAMG-22; YD/T502

Electrical Parameters
Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of VDE0875-N and ISO8528

Continuous Generator

These generators operate year-round and are usually located in areas far away from the power grid or near industrial and mining enterprises to meet the needs of construction, production and domestic electricity.

At present, in the area with more developed economy, because the construction of electric power network is less than the power demand of users, the commonly used diesel generator set with short construction cycle is set up to meet the needs of users.

This type of generator has a relatively large capacity, provides continuous power supply for unsteady loads, has no limit on the duration of continuous operation, and allows one hour of over-load power supply for a period of 12 hours.

The overload capacity is 10% of the rated output power of diesel generator set. Because of its long running time and heavy load, the allowable power relative to the limit power of this unit is set to a lower point.

Features

• Standard open type is good to working in engine room with ventilation system.
• The super silent model ( up to 50kw ) has electronic cooling fan and special design low noise level canopy, which is specialized for low noise level environment, such as office building, villa, museum.
• Standard soundproof type ( IP21 ) will be working perfectly in the open air
• All standard type can be working in 3rd explosive area for mining industry, special design will be suitable for 2nd explosive area.
• All functional components are modular design, for fast repair, replace, and reduce stock, which can satisfy rental business.
• 50℃ radiator
• IP54 ( soundproof sets ), IP56 ( control system )
• Base fuel tank for at least 8 hours running
• For friendly experience, all I/O control interface and daily maintenance parts are combined in one side.
