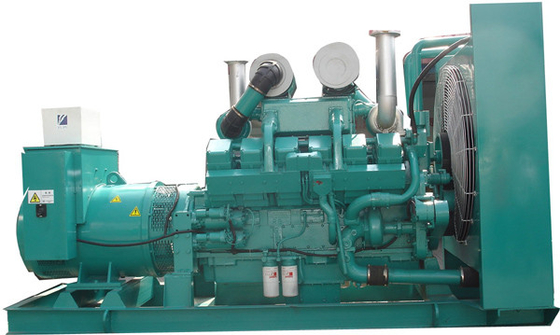

640kw 800kva Cummins Open Type Generators Sea Port Used 4.16kv

640kw 800kva Cummins Open Type Generators Sea Port Used 4.16kv

Brand Name: SHX
Model Number: SHX800
MOQ: 1 set
Price: usd 1-75000 one set
Packaging Details: pack by Plyfilm
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
Foshan Guangdong China
Certification:
CE/ISO9001/Saber/COC/EPA
Phase:
3phases4wires
Fuel Tank:
24hours
Noise:
60-70db(7meters Away)
Warranty:
1 Year Or 1000 Running Hours, Global Warranty
Rated Voltage:
4.16kv
Supply Ability:
1000sets
Supply Ability:
1000sets one year
Highlight:

800kva Cummins Open Type Generators

,

open type generator 4.16kv

,

640kw 800 kva cummins generator

Product Description



800kva open type 60hz High Voltage Generators sea port used 4.16kv

Products Features:
1. We cooperate with famous diesel engine -Powered by Cummins, Perkins Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, FAW, SDEC, Weichai, MTU, Ricardo, Jichai,ETC
2. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
3. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
4. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
5. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker,High water temperature protection,Engine oil alarm, Over load protection, Overfrequency protection, Emergency stop unit
6. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.


Safety - Stability - Economy - Reliability Power
Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard


Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25



MODEL SHX800
Generator with Cummins Engine
Prime Power (50HZ) 600KW/750KVA
Standby Power (50HZ) 640kw/800KVA
Power Factor 0.8 (Lagging)
Phase Wires 3-phases 4-Wires
Start Model Electric
Protection

Low oil-pressure, High water temperature,

Over-speed, Over-current

Engine Model CCEC Cummins KT38-GA
Cylinders 6
Cylinder Arrangement L
Bore x Stroke(mm) 159*159
Compression Ratio 16.5:1
Speed 1800rpm
Cooling Method Water – cooled
Starting Method 24V DC electrical start
Full Load Diesel Consumption (L/H) 38
Engine Displacement (L) 37.8
Inspiration (L) Turbocharged Intercooler
Lube Volume (L) 24.3
Coolant Volume (L) 28
Noise (Db) ≤ 95
Alternator Model Newage Stamford UCI274F or Leadtech LTG274FA
Alternator Power 600KW/750KVA Brushles with AVR
Voltage 4.16KV
Protection IP23
Voltage Regulation ±4%
Insulation Class H
Voltage Control AVR
