Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | Foshan Guangdong China |
|---|---|
| Brand Name: | SHX |
| Certification: | CE/ISO9001/Saber/COC/EPA |
| Model Number: | SHX500 |
| Minimum Order Quantity: | 1 set |
| Price: | usd 1-98000 one set |
| Packaging Details: | pack by Plyfilm |
| Delivery Time: | 200 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000sets one year |
| Starting Method: | Electrical Strat | Protection Class: | IP23 |
|---|---|---|---|
| Warranty Tim: | 1 Year Or 1000 Hours | Rated Current: | 3200A |
| Frequency: | 50HZ | Packaging Details: | Wrapped With Film And Foam |
| High Light: | KTA19 G3A High Voltage Generators,IP23 Cummins High Voltage Generators,3200A 50Hz 500kva DG Set |
||

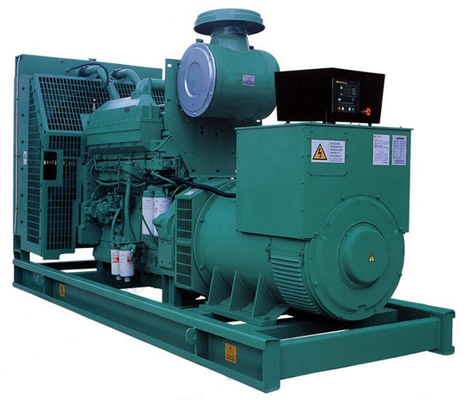

500kva power gen set for sale with Cummins engine High Voltage Generators
Performance Data
| Engine Brand & Model | Cummins KTA19-G3A | |
| Alternator Brand & Model | LSA47.2M7 | |
| Control System | Deepsea DSE6120 | |
| Standard Noise Level@7m (Soundproof Sets) | 80 dBA | |
| Circuit Breaker Type | 3 Poles MCCB | |
| Frequency & Phase | 50Hz, 3Phases + 4Wires | |
| Engine Speed (RPM) | 1500 | |
| Fuel Consumption (L/hr) | 100% Load | 97 |
| 75% Load | 73 | |
| 50% Load | 51 | |
| 25% Load | 30 | |
1. The series of diesel generator can be adopt, such as Volvo, Cummins, yuchai, weichai, Perkins, etc.
2. Equipped with famous Brushless alternator - Optional Stamford, Leroy Somer, Marathon, Farrand, Mecc alte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Generator equipped with 24V DC battery with charger, battery connects wire.
7. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
8. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
