Place of Origin: | China |
---|---|
Brand Name: | SHX |
Certification: | ISO9001:2015, CE |
Model Number: | SCL688 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Standard export packing |
Delivery Time: | 25-30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 200 Sets per year |
Engine Brand: | Cummins | Alternator Brand: | Leroy Somer |
---|---|---|---|
Controller: | Smartgen HGM6110N | Starting Method: | By Battery |
Cooling System: | Water Cooled With Radiator | Voltage Regulator: | AVR |
High Light: | AVR Power Diesel Generator 625kva,Power Diesel Generator 550kw,CCEC Cummins 500kw Generator |

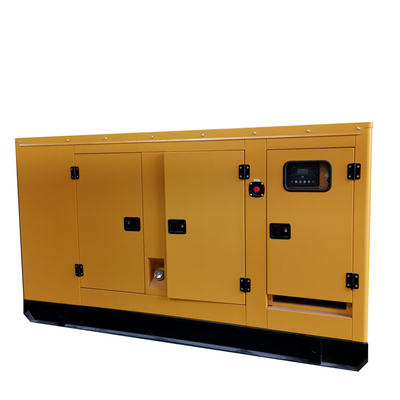

SHX 500kw Power Diesel Generator 550kw 625kva Soundproof Cummins Diesel Genset
Power Specifications
1) 1500RPM at 50Hz/1800RPM at 60Hz
2) Water Cooled
3) Turbocharged
Electrical Specifications
1) Power Factor: 0.8 Lagging
2) 3 Phase 4 Pole
3) Insulation: Class H
4) Brushless
5) Self-Excited
6) IP22 Protection
7) AVR regulation
8) Starting by Battery
Technical specification of 500kw power diesel generator
Genset model | SCL688 |
Genset rated power | 500KW/625KVA |
Rated voltage | 400/230V (adjustable) |
Rated current | 900A |
Frequency | 50/60Hz |
Power factor | 0.8 Lagging |
Connecting type | 3 phase 4 wire |
Cooling system | Closed cycle water-cooled with fan, water tank |
Overall dimension (L×W×H) mm | 4700×1800×2450 |
Gross weight (kg) | 5400 |
Diesel Engine | |
Brand | CCEC Cummins |
Model | KTAA19-G6A |
Engine type | 6 cylinders in line, 4 stroke, air-to-air after-cooled |
Aspiration | Turbocharged |
Rotating speed | 1500/1800 RPM |
Engine cooling system | Water-cooled |
Speed governing system | Electronic speed governor |
Starting method | By 24V batteries |
Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
Displacement (L) | 19 |
Bore×Stroke (mm) | 159×159 |
Compression ratio | 13: 1 |
100% Load fuel consumption (g/kw.h) | ≤206 |
Lube capacity (L) | 38 |
Alternator | |
Brand | Leroy Somer |
Model | TAL-A47-F |
Excite type | Brushless self-excited AVR regulation |
Connecting type | 3 phase 4 pole |
Steady frequency change | 0.50% |
No load voltage | ≥95%-105% |
Steady voltage | ≤±1% |
Insulation class | Class H |
Protection grade | IP23 |
The components of the genset | |
(1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame. |
General Feature
For open type, the diesel genset will be much easier to maintenance and repair, with more durable performance and longer service life, so the cost performance is higher.
For silent type, diesel generator set, the noise level can be 68-78db(A) @ 7M; with silent canopy, the genset can be soundproof, rainproof, rustproof, dustproof and more safe.
