Brand Name: | SHX |
Model Number: | SHX500 |
MOQ: | 1 set |
Price: | usd 1-35000 one set |
Packaging Details: | pack by Plyfilm |
Payment Terms: | L/C, T/T, Western Union |

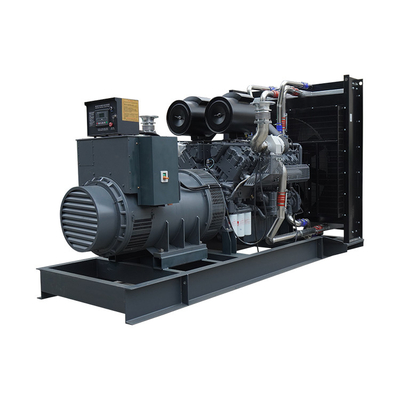

400kw Continuous heavy duty power plant Standby Diesel Generator with Cummins engine
Engine Model | 6ZTAA13-G4 |
Engine manufacturer | Cummins |
Number of Cylinders | 6 cylinders |
Cylinders arrangement | Vertical in Line |
Cycle | 4 stroke |
Aspiration | Turbocharged and Aftercooled |
Bore×Stroke | 159mm x159mm |
Displacement | 19L |
Compression ratio | 13.9:1 |
Standby Power/Speed | 580KVA/1500rpm |
Speed Governor | Electrical |
Cooling System | Forced water cooling cycle |
Steady speed droop | ≤1% |
Fuel Consumption at 100% Load | 203.8G/KW.H |
Starter Motor | DC24V |
Alternator | DC24V |
Alternator:
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 500KVA |
Frequency/speed | 50HZ/1500RPM |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±0.5% |
Insulation Grade | H |
Protection Grade | IP23 |
Delivery standard configuration:
1. Generator Set Distributor Random Technical Documents
2. Diesel engine, radiator / Muffler / Unit manual
3. Alternator / connection elbow / unit product quality certificate
4. Steel structure chassis / Battery and cable / Control screen
5. MCCB air protection switch / Damping pad / Engine original quality file
6. Generator original quality documents
We are specialized in making 30kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, FARRAND alternators. Our gensets mainly use DEEPSEA and SMARTGEN control panel. According to your requests, they can be open type, silent type, mobile type and container type.
