Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | Foshan Guangdong China |
|---|---|
| Brand Name: | SHX |
| Certification: | CE/ISO9001/Saber/COC/EPA |
| Model Number: | SHX1000 |
| Minimum Order Quantity: | 1 set |
| Price: | usd 1-98000 one set |
| Packaging Details: | pack by Plyfilm |
| Delivery Time: | 40 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Diesel Engine: | Cummins | Type: | Silent/Open/Trailer/Container |
|---|---|---|---|
| Fuel Tank: | 8hours | Cooling Method: | Radiator/water And Fan |
| Phases: | Three Phases, Four Wires | Application: | Primary, Continuous Or Backup Generator |
| High Light: | 1000kva Emergency Cummins Generator,60HZ cummins emergency generator,Industrial Sound Proof Diesel Generator |
||

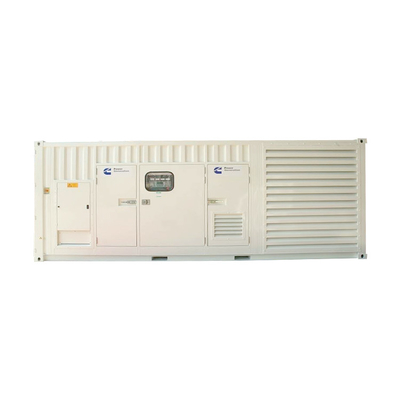

Sound Proof Cummins 60HZ 1000kva industrial used Emergency Diesel generator
Technical Data
| Model | Engine | Standby Power | Alternator | Controller | Genset Type |
| SHX1000 | Cummins KTA38-G2A | 800kw/1000kva | Stamford | Deepsea | Silent/Open/Trailer/Container |
| Engine data | |
| Engine model | Cummins KTA38-G2A |
| Manufacturer | CCEC |
| Air intake system | Turbo |
| Fuel system | PT type fuel pump,EFC |
| Number of Cylinders | 12 cylinders |
| Displacement | 37.8L |
| Bore and Stroke | 159*159(mm) |
| Compression ratio | 14.5:1 |
| Prime Power/Speed | 813KW/1500RPM |
| Standby Power/Speed | 895KW/1500RPM |
| Governor type | Electronic |
| Alternator data | |
| Alternator brands | Stamford/Leroy Somer/Marathon etc. |
| Connecting type | 3 phase, 4 wire, Y type connecting |
| Number of bearing | 1 |
| Power factor | 0.8 |
| Protecting grads | IP23 |
| Excitor type | Brushless, self-exciting |
| Prime power | 1000kva |
| Controller data | |
| Controller brands | Deepsea/Smartgen/ComAp etc. |
| Controller features | LCD display and alarm indication |
| Multiple display languages | |
| Customizable power-up text | |
| Data logging facility | |
| Internal PLC editor | |
| PC USB communications | |
| Self-protections | |
Our 1000kva diesel gensets use Cummins KTA38-G2A diesel engines, coupled with Stamford, Leroy Somer ot Marathon alternators, controllers we used are Deepsea, Smartgen or ComAp. The generator can be open type, containerized silent type or tailer mounted type.
1. Diesel engine equips 50℃ radiator with water cooling method, it can work efficiently in full load and high temperature
2. Higher efficient and more reliable
3. Lower fuel consumption
4. Low-carbon and environmental protection
5. Reliable automatic voltage control exciting system, providing invariable excitation on all occasions
6. Easy to be connected with power network or other generators
