Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SCF358 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Farrand / Leroy Somer / Stamford |
|---|---|---|---|
| Controller: | Smartgen / Deepsea | Speed Governing: | Electronic |
| Cooling System: | Water Cooled With Radiator | Warranty: | 1 Year Or 1000 Running Hours |
| High Light: | 0.8 Lagging Electric Diesel Generators 260kw,Electric Diesel Generators 325kva,50Hz 380V Cummins Silent Genset |
||

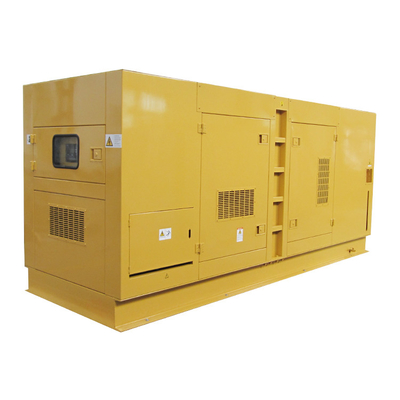

SHX 325kva Electric Diesel Generators 260kw 50Hz 380V 3 Phase Silent Cummins Genset
Advantages of 325kva silent Cummins genset
1) Low exhaust gas
2) Independent fuel direct gush-oil system
3) Low fuel consumption
4) Steady performance
5) Good power-weight ratio
6) Small, compact structure, beautiful appearance
7) Easy to facilitate installation, easy to maintenance
Technical Specification
| Genset model | SCF358 |
| Genset rated power | 260KW/325KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 468A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 4200×1400×2100 |
| Gross weight (kg) | 3700 |
| Diesel Engine | |
| Brand | DCEC Cummins |
| Model | 6LTAA9.5-G1 |
| Engine type | 6 cylinders in line, 4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 9.5 |
| Bore×Stroke (mm) | 114×145 |
| Compression ratio | 16.6: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤197 |
| Lube capacity (L) | 27.6 |
| Alternator | |
| Brand | Farrand |
| Model | FLD444ES |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator assembly; (4) Control panel; (5) Base frame. | |
Sunkings Silent Generator Set Features:
A new kind of acoustic material is used as pugging, noise reducing return-flow wind tunnel is used as generator set's ventilation system, and louver is installed in the window to prevent rains and other intruders. High efficiency silencer with double level structure and another silencer between two levels keep the noise at the lowest level. The box is modular structure with indicator and maintenance doors which make installation, operation and maintenance very convenient. Benefited from the special design, medium low noise diesel generator set's noise can be as low as 70dB (A) (at LP7m). Fuel tank can be installed on it according to customer needs.
Automatic Transfer Switch (ATS)
Automatic Transfer Switches are an integral part of the power generation process, which allows smooth and immediate transfer of electrical current between multiple sources and the load. When the generator is operating, the transfer switch prevents dangerous feedback of current to the utility’s system. It also ensures that different power sources are fully synchronized before their power is combined or loads are transferred, which is imperative for safe operation.
The transfer switch senses when utility power is interrupted, and starts up the generator if the utility power remains absent. In about five to ten seconds, when the generator is producing full power, the transfer switch disconnects the load from the utility and connects it to the generator, restoring electricity to the load. The transfer switch continues to monitor utility power, and when it is restored, switches the load from the generator back to the utility. Once the generator is disconnected, it goes through a cool-down routine and shut down automatically.
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
