Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SCL990 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300 Sets per year |
| Engine: | Cummins | Alternator: | Farrand / Leroy Somer / Stamford |
|---|---|---|---|
| Controller: | Smartgen / Deepsea | Color: | Customer's Request |
| Air Intake: | Tubocharged | Voltage Regulator: | AVR |
| High Light: | 900kva Power Diesel Generator,Soundproof Power Diesel Generator,990kva Diesel Generator With Cummins Engine |
||

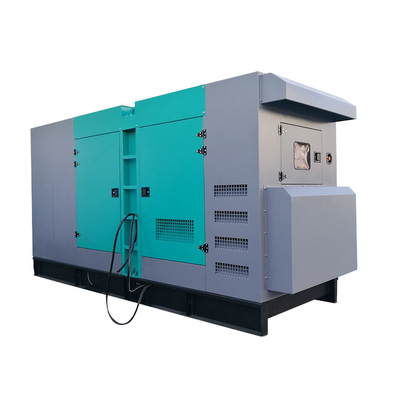

SHX 900kva Power Diesel Generator 990kva Soundproof Diesel Generator With Cummins Engine
Applications of 900kva soundproof diesel generator:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
Technical Specifications
| Genset Model | SCL990 |
| Prime Power | 720KW/900KVA |
| Standby Power | 792KW/990KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50HZ |
| Rated Current | 1296A |
| Genset Structure | SILENT |
| Dimension | 5950×2200×2500mm |
| Net Weight | 9000KG |
| Noise level | 80dB at 7 meters |
| Fuel Tank Capacity | 800L |
| Engine Model | CCEC Cummins KTA38-G2A |
| Engine Features | 12-cylinder in vee, 4 stroke, water cooled, turbocharged |
| Bore * Stroke | 159mm × 159mm |
| Displacement | 38L |
| 12-hour Power | 792KW/1500 |
| Fuel Consumption | 202 g/kw.h |
| Compression Ratio | 14.5:1 |
| Governor type | Electronic |
| Alternator Model | Leroy Somer TAL-A49-D |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Smartgen HGM6110 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturer’s cost.
1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.
1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries, instruments and controls for a complete test of the generator set.
Advantages of Diesel Generator Set Powered by Cummins Engine:
1. International Warranty Service
2. With ISO9001&CE certification
3. Spare parts are easy to get from worldwide market with much cheaper price
4. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Farrand alternator
5. Perfect after-service network
6. Both 50Hz and 60Hz
7. Rigorous test including 50% load,75% load,100% load and 110% load
8. Short delivery time
