Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SCL1100 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Leroy Somer |
|---|---|---|---|
| Controller: | Smartgen / Deepsea | Materials: | 100% Copper |
| Protection Grade: | IP23 | Starting Method: | By Batteries |
| Highlight: | 1000kva 800kw Diesel Generator,800kw Diesel Generator 50Hz,1500RPM 400V 3 Phase Generator Set |
||

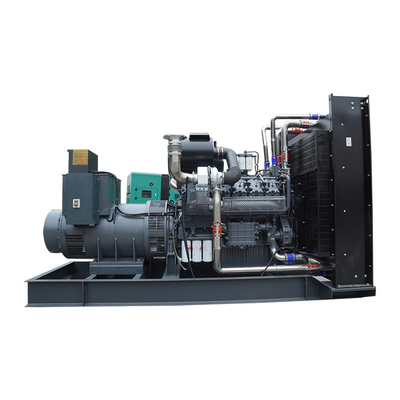

SHX Power Diesel Generator 1000kva 800kw 50Hz 1500RPM 400V 3 Phase Generator Set
Standard Configuration:
1) Cummins engine
2) Leroy alternator (Stamford, Marathon, Farrand brand for options)
3) Smartgen HGM6110 control panel (Deepsea 6120 for option)
4) Delixi circuit breaker
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
Genset Specifications
| Genset model | SCL1100 |
| Genset rated power | 24KW / 30KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 1440A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with radiator |
| Overall dimension (L×W×H) mm | 4200×1800×2300 |
| Weight (kg) | 7500 |
Engine Specifications
| Diesel Engine | |
| Brand | CCEC CUMMINS |
| Model | KTA38-G5 |
| Engine structure | 12 cylinders vertical in vee, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 38 |
| Bore×Stroke(mm) | 159×159 |
| Compression ratio | 13.9: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤204 |
| Lube capacity(L) | 114 |
Alternator Specifications
| Alternator | |
| Brand | LEROY SOMER |
| Model | TAL-A49-E |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade |
IP23 |
Control Function
Manual start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.
Continuous Generator
These generators operate year-round and are usually located in areas far away from the power grid or near industrial and mining enterprises to meet the needs of construction, production and domestic electricity.
At present, in the area with more developed economy, because the construction of electric power network is less than the power demand of users, the commonly used diesel generator set with short construction cycle is set up to meet the needs of users.
This type of generator has a relatively large capacity, provides continuous power supply for unsteady loads, has no limit on the duration of continuous operation, and allows one hour of over-load power supply for a period of 12 hours.
The overload capacity is 10% of the rated output power of diesel generator set. Because of its long running time and heavy load, the allowable power relative to the limit power of this unit is set to a lower point.
