Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SCL495 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Leroy Somer |
|---|---|---|---|
| Controller: | Smartgen / Deepsea | Cooling System: | Water Cooled With Radiator |
| Voltage Regulation: | AVR | Warranty: | 1 Year Or 1000 Running Hours |
| Highlight: | AVR Backup Diesel Generator 450kva,Backup Diesel Generator 360kw,3 Phase Cummins Silent Genset |
||

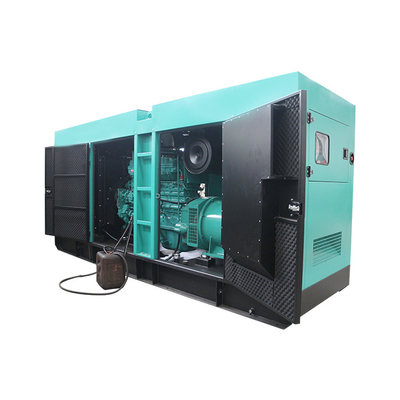

SHX 450kva Backup Diesel Generator 360kw Cummins Silent Genset 3 Phase Generator
Advantages of Cummins silent genset:
1. International Warranty Service
2. With ISO9001&CE certification
3. Spare parts are easy to get from worldwide market with much cheaper price
4. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Farrand alternator
5. Perfect after-service network
6. Both 50Hz and 60Hz
7. Rigorous test including 50% load,75% load,100% load and 110% load
8. Short delivery time
Technical specifications
| Genset Model | SCL495 |
| Prime Power | 360KW/450KVA |
| Standby Power | 396KW/495KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 648A |
| Genset Structure | Silent type |
| Dimension | 4600×1600×2300mm |
| Net Weight | 4350KG |
| Noise level | 75dB at 7 meters |
| Fuel Tank Capacity | 8 hours |
| Engine Model | 6ZTAA13-G2 |
| Engine Features | 6-cylinder in-line, 4 stroke, water cooled ,Turbocharged |
| Bore * Stroke | 130mm × 163mm |
| Displacement | 13L |
| 12-hour Power (kw) | 390KW/1500 |
| Fuel Consumption (g/kw.h) | 192 |
| Compression Ratio | 17:1 |
| Fuel system | Electronic injection |
| Alternator Model | Leroy Somer / TAL-A47-B |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Smartgen 6110 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
SHX Soundproof Generator Set Features:
A new kind of acoustic material is used as pugging, noise reducing return-flow wind tunnel is used as generator
set's ventilation system, and louver is installed in the window to prevent rains and other intruders. High efficiency
silencer with double level structure and another silencer between two levels keep the noise at the lowest level.
The box is modular structure with indicator and maintenance doors which make installation, operation and
maintenance very convenient. Benefited from the special design, medium low noise diesel generator set's
noise can be as low as 75dB (A) (at LP7m). Fuel tank can be installed on it according to customer needs.
Supply scope of silent genset
1.Standard tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
2.Brand-new engine, with start motor.
3.Brand new brushless alternator, single bearing, flange connection, IP21-23, H insulation class, with AVR.
4.Auto control panel, with LCD display.
5.Engine mounted battery-charging alternator.
5.Circuit Breaker, Exhaust Silencer
6.Radiator for 40°C ambient temperature and double-deck cooling, with fan guard and front guard.
7.Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset
running under stabilization.
8.Skid-mounted bottom Fuel tank - 8hrs continuous running for choice (bigger fuel tank by your demand
under extra cost)
9.External recessed emergency stop button for extra safety
10.The colors & Brands by your requests
11.Optional choice: ATS (automatic transfer switch), battery charger of mains supply, fuel-water separator,
water heater and oil heater ( depends on using environment),fuel filter, oil filter, water filter and air filter, Parallel
system for your choice.
Our company attaches great importance to after-sales service, the user to establish a computer archive,
tracking services, regular inspection services. For each category generator provided in our company, all
could enjoy 12 months or 1000 working hours maintenance. For helping customers master the operation,
we in particular provide free site and training courses of different types of generators.
