Place of Origin: | China |
---|---|
Brand Name: | SHX |
Certification: | ISO, CE, Soncap, EPA |
Model Number: | SCF-1000 |
Minimum Order Quantity: | 1 set |
Price: | USD 50000-80000USD |
Packaging Details: | Plyfilm or plywood |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 20 Sets per Month |
Phase: | 3 Phases 4 Wires | Certificate: | CE,ISO,BV,ISO |
---|---|---|---|
Engine Brand: | USA,UK,Germany,China | Place Of Origin: | Guangdong, China |
Warranty: | 1 Year Or 1000 Running Hours, Global Warranty | Port: | Guangzhou, Foshan, Shen |
High Light: | 1800rpm Mega Silent Generator,Cummins Diesel Engine Mega Silent Generator,1000kva Mega Silent Generator |

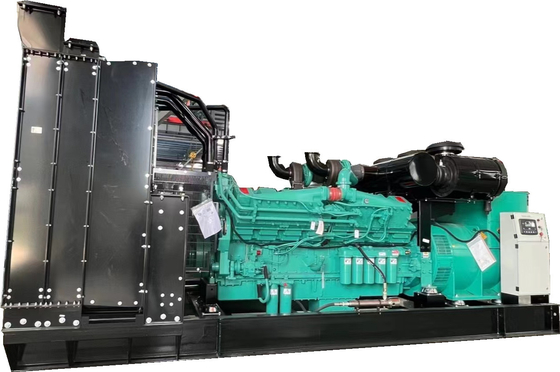

SHX 1 Mega Silent Generator 1000kva Cummins Diesel Engine OEM Certificate
MODEL | SCF-1000 |
Powered by Cummins Engine | |
Prime Power (60HZ) | 725kw/906kva |
Standby Power (60HZ) | 800kw/1000kva |
Power Factor | 0.8 (Lagging) |
Phase Wires | 3-phases 4-Wires |
Start Model | Electric |
Protection |
Low oil-pressure, High water temperature, Over-speed, Over-current |
Engine Model | Cummins KTA38-G2 |
Cylinders | 12 |
Cylinder Arrangement | L |
Bore x Stroke(mm) | 159X 159 |
Compression Ratio | 14.5:1 |
Speed | 1800rpm |
Cooling Method | Water – cooled |
Starting Method | 24V DC electrical start |
Full Load Diesel Consumption (L/H) | 167 |
Engine Displacement (L) | 37.8L |
Inspiration (L) | Turbocharged Intercooled |
Lube Volume (L) | 135 |
Coolant Volume (L) | 252 |
Noise (Db) | ≤ 80 |
Alternator Model | Stamford Type Leateck LTG 404CA |
Alternator Power | 728/910a brushless with AVR |
Voltage | 380/220V 220/127V 480/277V |
Protection | IP23 |
Voltage Regulation | ±4% |
Insulation Class | H |
Voltage Control | AVR |
Net Weigh (KGS) | 6700 |
Dimensions (L x W x H) mm | 4500*1800*1900 |
Controller | Smartgen 6110 or Deepsea 6020 |
Optional | ATS (auto transfer switch) |
AUTO Battery Charger | |
Base Fuel Tank (for open type) |
