Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SHX-250 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Farrand / Leroy Somer / Stamford |
|---|---|---|---|
| Controller: | Smartgen / Deepsea | Product Type: | Soundproof |
| Aspiration: | Turbocharged And Intercooled | Cooling Method: | Water Cooled With Radiator |
| High Light: | Soundproof Cummins Diesel Generator Set,200kw Cummins Diesel Generator Set |
||

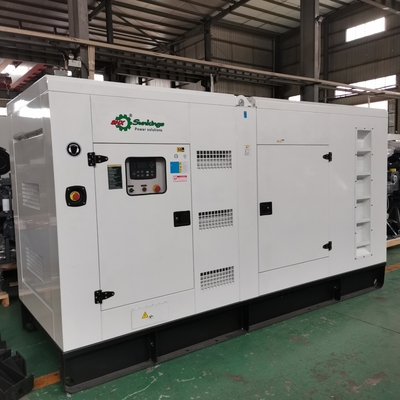

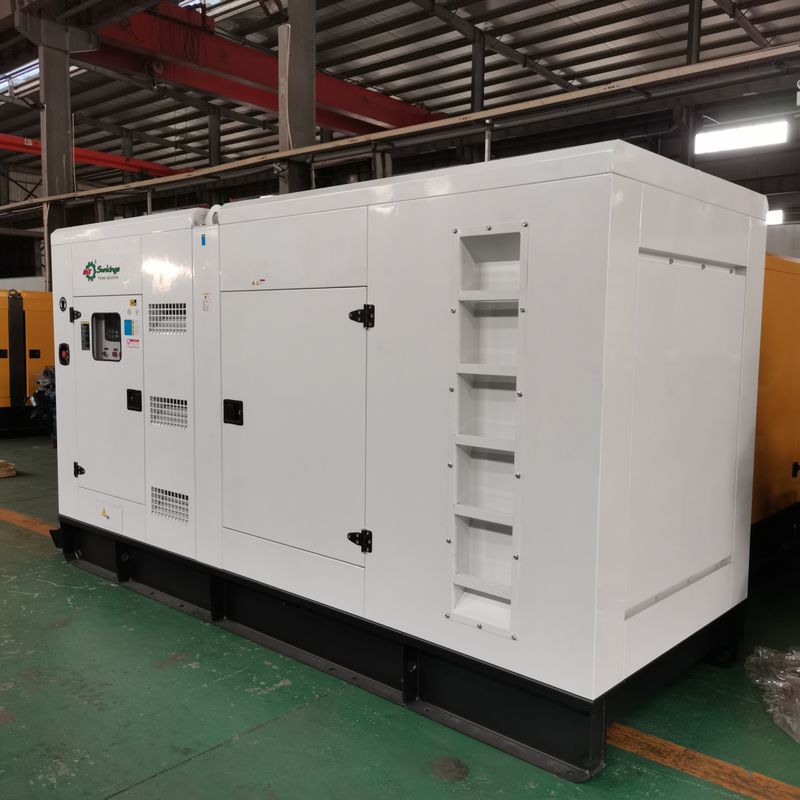

SHX 250 Kva Cummins Diesel Generator Set 200 Kw Soundproof Diesel Generator
Genset Standard Configuration:
1) Cummins engine.
2) Stamford alternator (Leroy Somer, Mecc Alte, Farrand brand for option).
3) Deepsea DSE6120 or Smargen HGM6120 control panel.
4) Chint circuit breaker.
5) 8 running hours base fuel tank.
6) Anti-vibration mounted system.
7) Battery, battery charger and battery isolator switch.
8) Industrial silencer and flexible exhaust hose.
Genset Specifications
| Genset model | SHX-250 |
| Genset rated power | 200KW / 250KVA |
| Rated voltage | 230V / 400V (adjustable) |
| Rated current | 360 Amps |
| Frequency | 50 / 60 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 3600×1350×2000 |
| Weight (kg) | 2500 |
EngineSpecifications
| Diesel Engine | |
| Brand | DCEC Cummins |
| Model | 6LTAA8.9-G2 |
| Engine structure | 6 cylinders vertical in line, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 8.9 |
| Bore×Stroke(mm) | 114×145 |
| Compression ratio | 16.6: 1 |
| 100% Load fuel consumption (litre/h) | ≤51.6 |
| Lube capacity(L) | 27.6 |
Alternator Specifications
| Alternator | |
| Brand | Farrand |
| Model | FLD274K |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application,
in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within
a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration
of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
