Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SHX-500 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Farrand / Leroy Somer / Stamford |
|---|---|---|---|
| Control Panel: | Smartgen / Deepsea | Cooling System: | By Radiator |
| Fuel System: | Electronic Injection | Voltage Regulation: | AVR |
| High Light: | 500kva Cummins Diesel Generator Set,400kw Cummins Diesel Generator Set |
||

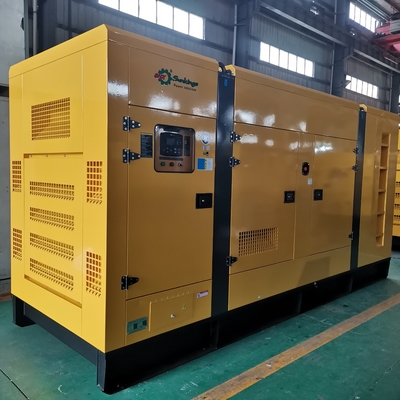

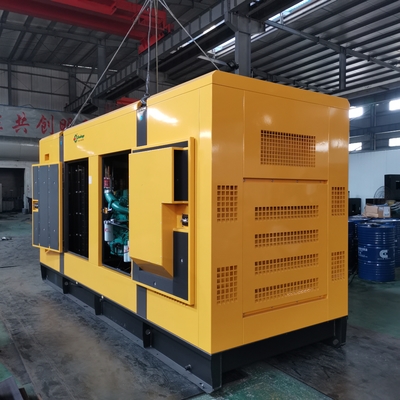

SHX 400kw 3 Phase Generator 500kva Cummins Diesel Generator Set
Technical Specifications
| Genset Model | SHX-500 |
| Prime Power | 400KW/500KVA |
| Standby Power | 440KW/550KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50/60Hz |
| Rated Current | 720A |
| Genset Structure | Soundproof type |
| Dimension | 4600×1600×2300mm |
| Net Weight | 4450KG |
| Noise level | 75dB at 7 meters |
| Fuel Tank Capacity | 8 hours |
| Engine Model | QSZ13-G3 |
| Engine Features | 6-cylinder, 4 stroke, water cooled, turbocharged |
| Bore * Stroke | 130mm × 163mm |
| Displacement | 13L |
| 12-hour Power(kw) | 4406KW/1500 |
| Fuel Consumption (g/kw.h) | 191 |
| Compression Ratio | 17:1 |
| Governor type | Electronic |
| Alternator Model | Farrand / FLD544D |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Function | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Advantages of Diesel Generator Set Powered by Cummins Engine:
1. International Warranty Service.
2. With ISO9001&CE certification.
3. Spare parts are easy to get from worldwide market with much cheaper price.
4. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Farrand alternator.
5. Perfect after-service network.
6. Both 50Hz and 60Hz.
7. Rigorous test including 50% load,75% load,100% load and 110% load.
8. Short delivery time.
SHX Soundproof Generator Set Features:
A new kind of acoustic material is used as pugging, noise reducing return-flow wind tunnel is used as generator
set's ventilation system, and louver is installed in the window to prevent rains and other intruders. High efficiency
silencer with double level structure and another silencer between two levels keep the noise at the lowest level.
The box is modular structure with indicator and maintenance doors which make installation, operation and maintenance
very convenient. Benefited from the special design, medium low noise diesel generator set's noise can be as low as
75dB (A) (at LP7m). Fuel tank can be installed on it according to customer needs.
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
