Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SCF165 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Farrand |
|---|---|---|---|

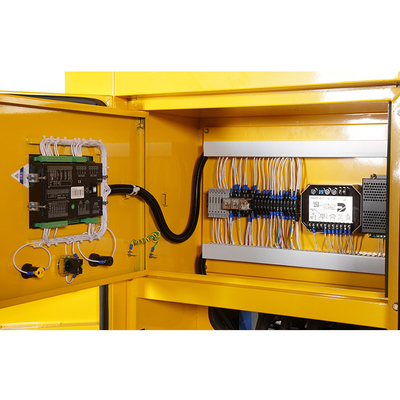

| Control Panel: | Smartgen HGM6110N | Speed Regulation: | Electrical Governor |
| Aspiration: | Turbocharged | Materials: | 100% Copper |
| Highlight: | 120kw Cummins Diesel Generator Set,Silent Cummins Diesel Generator Set |
||

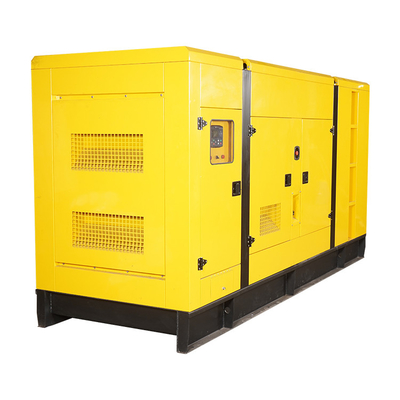

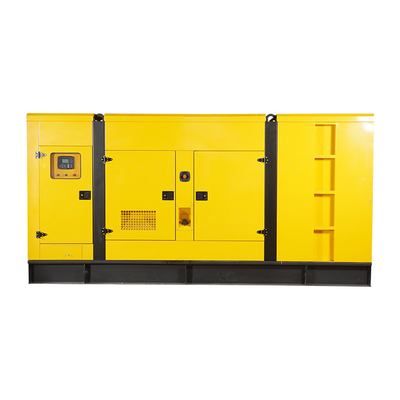

SHX 150kva Cummins Diesel Generator Set 120kw Silent Diesel Generator
Why choose us?
1.Sunkings is the first group of trade assurance suppliers, agree to abide product quality and delivery obligations.
100% payment refund against delivery time.
2.Alibaba Assessed 4 years Gold Supplier.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shipment.
5.Best Quality & Best Service with Competitive price.
Technical Specifications
| Genset model | SCF165 |
| Genset rated power | 120KW/150KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 216.5A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with radiator |
| Overall dimension (L×W×H) mm | 3200×1100×1750 |
| Weight (kg) | 1900 |
| Diesel Engine | |
| Brand | Cummins |
| Model | 6BTAA5.9-G12 |
| Engine type | 6 cylinders in line, 4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 5.9 |
| Bore×Stroke (mm) | 102×120 |
| Compression ratio | 17.5: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤208 |
| Lube capacity (L) | 16.4 |
| Alternator | |
| Brand | Farrand |
| Model | FLD274EL |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Radiator assembly; (4) Control panel; (5) Base frame; (6) Canopy. | |
Features
1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy
Introduction of Guangdong Sunkings Electric Co., Ltd.
Guangdong Sunkings Electric Co., Ltd has more than 18 years experience in manufacturing and maintenance
of diesel generator sets. We mainly manufacture 20-2750KVA Cummins, Perkins, Weichai, Yuchai and Shangchai
powered diesel gensets which are all made in China keeps the genset cost much lower than the US or EU or the
Japan cost, since the design and all materials are same as original factories, the quality remains almost same as
original factories.
Invitation to visit our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou,
and 35 minutes away from Canton fair.
3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
