Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO, CE, Soncap, EPA |
| Model Number: | SCF-880 |
| Minimum Order Quantity: | 1 set |
| Price: | USD 60000-80000USD |
| Packaging Details: | Plyfilm or plywood |
| Delivery Time: | 25 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 Sets per Month |
| Engine: | KTA3-G2B Cummins | Noise Level: | 70dB In 7 Meters |
|---|---|---|---|
| Fuel Tank: | 8-10hours | Generator Canopy: | CONTAINER/ SOUNDPROOF |
| Rated Voltage: | 230V/380V/400V/440V | Alternator: | Stamford/Marathon/Leroy Somer |
| Highlight: | Cummins Diesel Generator Set 800kva,70dB Cummins Diesel Generator Set,Cummins Diesel Generator Set Water Cooled |
||

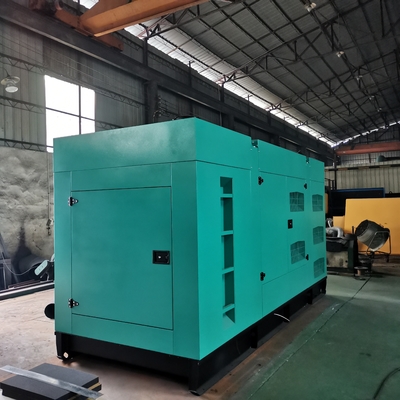

50HZ 60HZ Cummins Brand 800kva 640kw Diesel Generator With Soundproof
prime 800kva Generator Set Specifications:
|
Gensets Model |
Prime Power | Standby Power | ||
| kW | kVA | kW | kVA | |
| RYL800C | 640 | 800 | 704 | 880 |
1. 800kva cummins Generator Diesel
2. Cummins Engine:KTA38-G2B
3. prime Power: 800KVA/640KW
4. Cooling system:Closed cycle water-cooled with fan, water tank
5. Overall dimension (L×W×H) mm:4800*2200*2300
6. Bore×Stroke:159×159
7. Compression Ratio:16.5:1
8. displacement :38L
Engine Specification
|
Basic Features · Model:KTA38-G2 · Brand/Origin: cummins · Number of Cylinders: 6Cylinder arrangement: Vertical in-line · Stroke No. Four stroke · Rated Power kW:640kw |
· Speed r/min: 1500 · Starting Method: DC24V · Speed Governor : Electronic/Mechanical · Aspiration: turbocharged · Cooling : Closed Water- cooled · Steady-state Speed Adjustable Rate: <3%(Electronic)<5%(Mechanical) |
Alternator Features
|
Basic Features · Brand: stamford · Rated Power : 640kW/800KVA · Numbers of Bearing : 1 · Insulation Grade: H |
· Protection Grade: IP22 · Coil span: 2/3 · Winding type: 12 · Excitation : brushless · efficiency :90.2% · AVR |
|
Electrical Features · Steady-State Volt Adjustable Rate: ≤±1% · Electromagnetic interference factor: TIF:50;THF: 2% |
· Total harmonic LL/LN: 4% · Power factor: 0.8(lag) |
Product characteristics:
1. Our cooperate with famous diesel engine -Powered by famous CUMMINS engines.
2. Equipped with famous Brushless alternator - Optional Stamford, Leroy Somer, Marathon, Farrand, Mecc alte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Generator equipped with 24V DC battery with charger, battery connects wire.
7. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
8. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
