Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SHX-200 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Farrand/Leroy Somer/Stamford |
|---|---|---|---|
| Control Panel: | Smartgen/Deep Sea | Starting Method: | 24V Batteries |
| Speed Governing: | Electrical | Warranty: | 1 Year Or 1000 Hours |
| Speed: | 1500/1800rpm | Output Type: | AC Three Phase |
| High Light: | 200kva Cummins Diesel Generator Set,Three Phase Cummins Diesel Generator Set,160kw Cummins Diesel Generator Set |
||

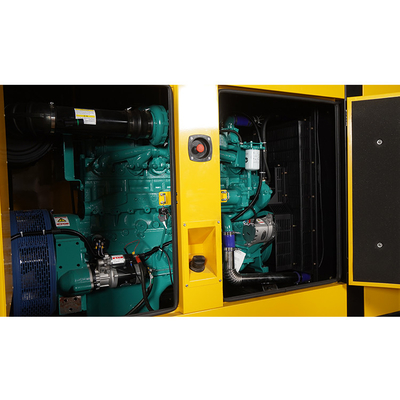

SHX 200kva Cummins Diesel Generator Set 160kw 220v 3 Phase Diesel Generator
Advantages of Diesel Generator Set Powered by Cummins Engine:
1. International Warranty Service.
2. With ISO9001&CE certification.
3. Spare parts are easy to get from worldwide market with much cheaper price.
4. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Farrand alternator.
5. Perfect after-service network.
6. Both 50Hz and 60Hz.
7. Rigorous test including 50% load,75% load,100% load and 110% load.
8. Short delivery time.
Technical Specifications
| Genset model | SHX-200 |
| Genset rated power | 160KW/200KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 289A |
| Frequency | 50/60Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with radiator |
| Overall dimension (L×W×H) mm | 3500×1250×1900 |
| Weight (kg) | 2300 |
| Diesel Engine | |
| Brand | Cummins |
| Model | 6CTAA8.3-G2 |
| Engine type | 6 cylinders in line, 4 stroke, water-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500/1800 RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 8.3 |
| Bore×Stroke (mm) | 114×135 |
| Compression ratio | 18.0: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤205 |
| Lube capacity (L) | 23.8 |
| Alternator | |
| Brand | Farrand |
| Model | FLD274H |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Radiator assembly; (4) Control panel; (5) Base frame; (6) Canopy. | |

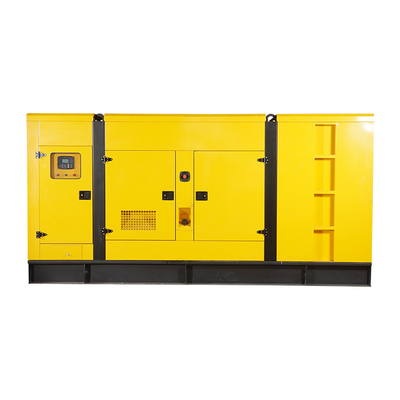

SHX Soundproof Generator Set Features:
A new kind of acoustic material is used as pugging, noise reducing return-flow wind tunnel is used as generator
set's ventilation system, and louver is installed in the window to prevent rains and other intruders. High efficiency
silencer with double level structure and another silencer between two levels keep the noise at the lowest level.
The box is modular structure with indicator and maintenance doors which make installation, operation and
maintenance very convenient. Benefited from the special design, medium low noise diesel generator set's
noise can be as low as 75dB (A) (at LP7m). Fuel tank can be installed on it according to customer needs.
Supply Scope of silent generator
1.Standard tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
2.Brand-new engine, with start motor.
3.Brand new brushless alternator, single bearing, flange connection, IP21-23, H insulation class, with AVR.

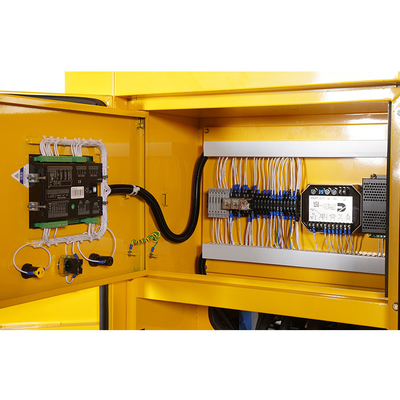

4.Auto control panel, with LCD display.
5.Engine mounted battery-charging alternator.
5.Circuit Breaker, Exhaust Silencer
6.Radiator for 50°C ambient temperature and double-deck cooling, with fan guard and front guard.
7.Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset
running under stabilization.
8.Skid-mounted bottom Fuel tank - 8hrs continuous running for choice (bigger fuel tank by your demand
under extra cost)
9.External recessed emergency stop button for extra safety
10.The colors & Brands by your requests
11.Optional choice: ATS (automatic transfer switch), battery charger of mains supply, fuel-water separator,
water heater and oil heater ( depends on using environment),fuel filter, oil filter, water filter and air filter,
Parallel system for your choice.
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
