1800rpm Cummins Diesel Generator 500kva 3 Phase Silent Diesel Generator 400kw

Brand Name:	SHX
Model Number:	SHX-550
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Standard export packing
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015, CE

Engine Brand:

Cummins

Alternator Brand:

Farrand

Control Panel:

Smartgen/Deepsea

Frequency:

50/60HZ

Speed:

1500/1800rpm

Output Type:

AC Three Phase

Warranty:

12 Months/1000 Hours

Color:

Customers' Requirement

Supply Ability:

200 Sets per year

Highlight:

1800rpm Cummins Diesel Generator

500kva Cummins Diesel Generator

Product Description

Cummins Diesel Generator 500kva 3 Phase Silent Diesel Generator 400kw

General Feature

Every generator set is subjected to a comprehensive test program which includes 25% load,
50% load, 75% load, 100% load, 110% load and the checking, proving of all control and safety
shut-down function.
Equipped with battery charger and 24V high performance maintenance-free lead-acid starting batteries
and connecting with cables.
Equipped with industrial silencer and flexible exhaust hose.
Equipped with 8-hours operation base tank.
Equipped with CHNT MCCB circuit breaker.
Designed to comply with ISO 8528/GB2820.
Powered by Cummins engine and coupled with Stamford alternator.

Genset Specifications

Genset model	SHX-550
Genset rated power	400KW / 500KVA
Rated voltage	230V / 400V (adjustable)
Rated current	720 Amps
Frequency	50 Hz
Power factor	0.8 Lagging
Connecting type	3 phase 4 wire
Cooling system	Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm	4600×1600×2300
Weight (kg)	4500

Engine Specifications

Diesel Engine
Brand	DCEC CUMMINS
Model	QSZ13-G3
Engine structure	6 cylinders vertical in line, 4 stroke, turbocharged
Rotating speed	1500 RPM
Engine cooling method	Water-cooled
Speed governing system	Electronic speed governor
Starting method	By 24V batteries
Engine filter system	Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L)	13
Bore×Stroke(mm)	130×163
Compression ratio	17:1
100% Load fuel consumption (litre/h)	≤101
Lube capacity(L)	45.46

Alternator Specifications

Alternator
Brand	FARRAND
Model	FLD544D
Excite type	Brushless self-excited AVR regulation
Connecting type	3 phase 4 pole
Steady frequency change	0.50%
No load voltage	≥95%-105%
Steady voltage	≤±1%
Insulation class	Class H
Protection grade	IP23

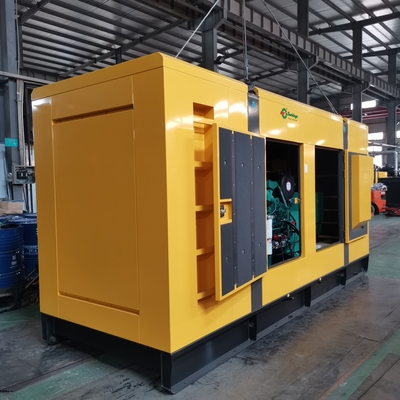

1800rpm Cummins Diesel Generator 500kva 3 Phase Silent Diesel Generator 400kw 0

Standby Generator Set

Usually, the power required by the user is supplied by the mains, and the generator set sets up to ensure

the basic production and life of the user is the standby genset when the mains is cut off or when the power

supply is interrupted for other reasons.

This type of generator set is mainly located in the telecommunications sector, hospitals, and industrial and

mining enterprises, airports, television stations and other major power generations.

This type of genset is kept in standby state at all times, providing a continuous supply of power to non-constant

loads, with no restrictions on the duration of continuous operation.

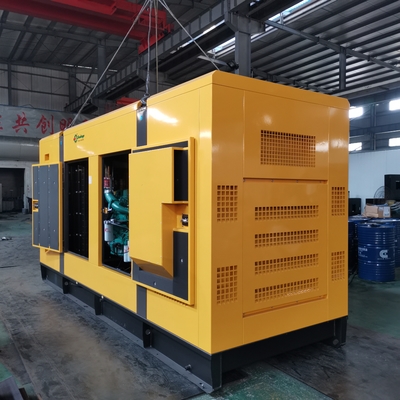

1800rpm Cummins Diesel Generator 500kva 3 Phase Silent Diesel Generator 400kw 1

Invitation to visit our factory

1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.

2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou,

and 35 minutes away from Canton fair.

3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.

4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
