Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SHX-1000 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Leroy Somer/Stamford |
|---|---|---|---|
| Control Panel: | Smartgen/Deep Sea | Rated Voltage: | 400/230V |
| Frequency: | 50/60HZ | Speed: | 1500/1800rpm |
| Output Type: | AC Three Phase | Warranty: | 12 Months/1000 Hours |
| High Light: | 1250kva Container Diesel Generator,Container Diesel Generator Soundproof,Containerized Diesel Generator Sets |
||

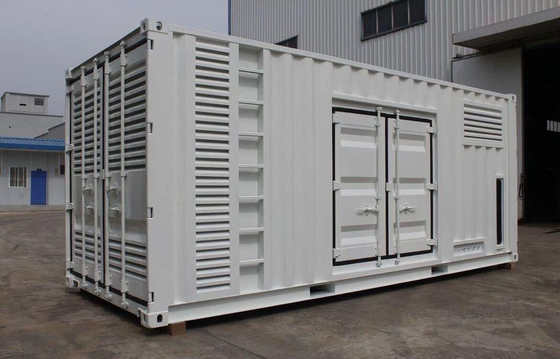

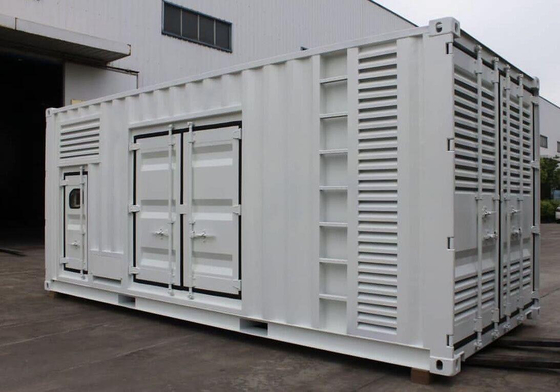

1250kva Container Diesel Generator Soundproof 1MW Containerized Diesel Generator Sets
Advantages:
1.Reliable Performance:
Reliable performance is the major advantage of SHX products, which is based on the outstanding design
in every aspect and strict QC system.
2.Customer First:
We devote ourselves to develop products to meet customer’s requirements. Our engineers develop and
design new products for customers.
3. Technical Support and Service:
Our engineer team will solve your technical problems within 48 hours.
4.Strict test process before ex-factory:
Every product will be tested twice before ex-factory, free load and under load, all products are 100%
ex-factory pass rate.
5.Certification:ISO9001:2015, TUV etc.
Genset Specifications
| Genset model | SHX-1000 |
| Genset rated power | 1000KW / 1250KVA |
| Rated voltage | 230V / 400V (adjustable) |
| Rated current | 1800 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 6058×2438×2896 |
| Weight (kg) | 13500 |
Engine Specifications
| Diesel Engine | |
| Brand | Cummins |
| Model | KTA50-G3 |
| Engine structure | 16 cylinders in vee, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 50.3 |
| Bore×Stroke(mm) | 159×159 |
| Compression ratio | 13.9: 1 |
| 100% Load fuel consumption (litre/h) | ≤260 |
| Lube capacity(L) | 151 |
Alternator Specifications
| Alternator | |
| Brand | Leroy Somer |
| Model | LSA 50.2 M6 |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Supply Scope of soundproof generator
1.Standard tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
2.Brand-new engine, with start motor.
3.Brand new brushless alternator, single bearing, flange connection, IP21-23, H insulation class, with AVR.
4.Auto control panel, with LCD display.
5.Engine mounted battery-charging alternator.
5.Circuit Breaker, Exhaust Silencer
6.Radiator for 50°C ambient temperature and double-deck cooling, with fan guard and front guard.
7.Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset
running under stabilization.
8.Skid-mounted bottom Fuel tank - 8hrs continuous running for choice (bigger fuel tank by your demand
under extra cost)
9.External recessed emergency stop button for extra safety
10.The colors & Brands by your requests
11.Optional choice: ATS (automatic transfer switch), battery charger of mains supply, fuel-water separator,
water heater and oil heater ( depends on using environment),fuel filter, oil filter, water filter and air filter,
Parallel system for your choice.
Standby Generator Set
Usually, the power required by the user is supplied by the mains, and the generator set sets up to ensure
the basic production and life of the user is the standby genset when the mains is cut off or when the power
supply is interrupted for other reasons.
This type of generator set is mainly located in the telecommunications sector, hospitals, and industrial and
mining enterprises, airports, television stations and other major power generations.
This type of genset is kept in standby state at all times, providing a continuous supply of power to non-constant
loads, with no restrictions on the duration of continuous operation.
