Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SHX-300 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Farrand |
|---|---|---|---|
| Controller: | Smartgen HGM6110N | Rated Voltage: | 230/400V |
| Speed: | 1500rpm | Frequency: | 50HZ |
| Output Type: | AC Three Phase | Warranty: | 12 Months/1000 Hours |
| High Light: | 300kva Silent Type Diesel Generator,Standby Silent Type Diesel Generator |
||

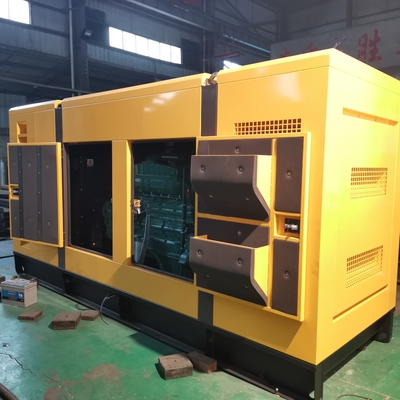

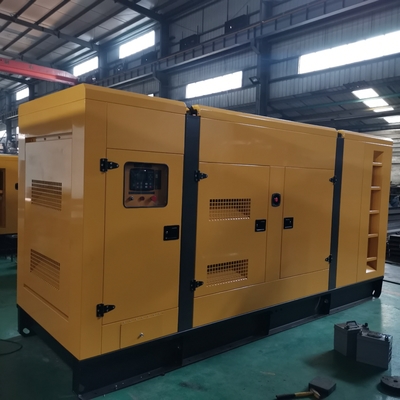

300kva Silent Type Diesel Generator 330kva 50Hz 3 Phase Standby Diesel Generator Set
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
Genset Specifications
| Genset model | SHX-300 |
| Genset rated power | 240KW / 300KVA |
| Rated voltage | 230V / 400V (adjustable) |
| Rated current | 432 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 4200×1400×2100 |
| Weight (kg) | 3800 |
Engine Specifications
| Diesel Engine | |
| Brand | CCEC CUMMINS |
| Model | NTA855-G1A |
| Engine structure | 6 cylinders vertical in line, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 14 |
| Bore×Stroke(mm) | 140×152 |
| Compression ratio | 14.5: 1 |
| 100% Load fuel consumption (litre/h) | ≤63.2 |
| Lube oil capacity(L) | 14 |
Alternator Specifications
| Alternator | |
| Brand | FARRAND |
| Model | FLD444D |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Why choose Cummins powered gensets?
1. Cummins engines which are made in China with the same standard of the US Cummins keep the quality
almost the same as the US Cummins.
2. More than 90% of the Engines components and spares are made in China which keeps the cost much lower.
3. Cummins engines are universally just as Cummins factories all around the world; all the spares are universal
which make the maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right near your house.
5. Engineers are more familiar with Cummins engines because they are most widely use in every filed and everywhere
around the world.
Automatic Transfer Switch (ATS)
Automatic Transfer Switches are an integral part of the power generation process, which allows smooth and
immediate transfer of electrical current between multiple sources and the load. When the generator is operating,
the transfer switch prevents dangerous feedback of current to the utility’s system. It also ensures that different
power sources are fully synchronized before their power is combined or loads are transferred, which is imperative
for safe operation.
The transfer switch senses when utility power is interrupted, and starts up the generator if the utility power remains
absent. In about five to ten seconds, when the generator is producing full power, the transfer switch disconnects the
load from the utility and connects it to the generator, restoring electricity to the load. The transfer switch continues to
monitor utility power, and when it is restored, switches the load from the generator back to the utility. Once the generator
is disconnected, it goes through a cool-down routine and shut down automatically.
Invitation to visit our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou,
and 35 minutes away from Canton fair.
3. When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
