Place of Origin: | China |
---|---|
Brand Name: | SHX |
Certification: | ISO, CE, Soncap, EPA |
Model Number: | SCF-550 |
Minimum Order Quantity: | 1 SET |
Price: | USD 30000-50000/SET |
Packaging Details: | Plyfilm or plywood |
Delivery Time: | 25 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 20 Sets per Month |
Rated Voltage: | 400/230V | Frequency: | 50/60HZ |
---|---|---|---|
Speed: | 1500/1800rpm | Rated Current: | 500KVA |
Output Type: | AC Three Phase | Warranty: | 12 Months/1000 Hours |
Highlight: | 500kva Diesel Generator,Super Silent Diesel Generator,500kva Cummins Diesel Generator Set |

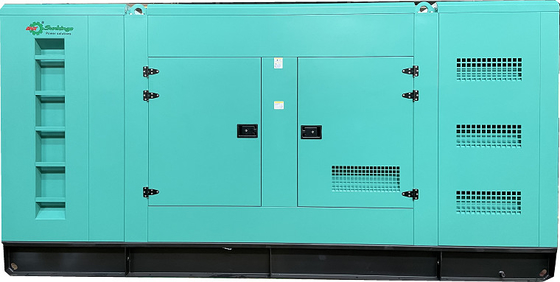

500kva Diesel Generator With Cummins Engine Set Super Silent
DIESEL GENERATOR DATA:
|
|||
Generator set model
|
SC500D
|
Size(L×W×H)
|
3400*1400*2100mm
|
Rated power(KW)
|
360
|
Rated frequency(Hz)
|
50
|
Standby power(KW)
|
400
|
Rated power factor
|
0.8
|
Rated speed(RPM)
|
1500
|
Rated current(A)
|
650
|
Rated voltage(V)
|
400/230
|
Fuel tank capacity(L)
|
50
|
Weight(Kg)
|
3400
|
Transformer capacity(KVA)
|
450/500
|
ENGINE DATA:
|
|||
Engine model
|
Cummins KTA19-G3
|
Engine rated power(KW)
|
403
|
Standby power(KW)
|
448
|
Output volume(L)
|
19
|
Engine construction (four-stroke)
|
Turbocharged/ Water to air intercooled
|
Starting method
|
Electrical starting
|
Number of cylinders/
arrangement |
6/L
|
Fuel injection mode
|
PT direct injection
|
Cylinder diameter x stroke(mm)
|
159×159
|
Speed control
|
Electronic speed control
|
Cooling method
|
Closed cycle water cooling
|
Rated fuel consumption rate(g/kwh)
|
203
|
Discharge temperature (℃)
|
491
|
Gas fuel rate(m3/min)
|
39
|
Smoke exhaust volume(m3/min)
|
103
|
Exhaust back pressure(KPa)
|
10
|
ALTERNATOR DATA:
|
|||
Alternator model
|
Faraday FD5S-4
|
Rated power(KW)
|
360
|
Standby power(KW)
|
400
|
Efficiency(%)
|
94.2%
|
Rated voltage(V)
|
400/230
|
Phase number and wiring
|
Three phase, Y type
|
Rated frequency(Hz)
|
50
|
Voltage regulation method
|
AVR
|
Rated speed(RPM)
|
1500
|
Class of insulation
|
H
|
Rated power factor
|
0.8
|
Level of increase temperature
|
H
|
Weight(Kg)
|
1200
|
Protection class
|
IP23
|
The ultra-quiet diesel generators produced by our company use domestic and foreign well-known brands such as MTU, Perkins, Volvo Penta, Shanghai Diesel, Yuchai and other diesel engines to complete sets. The silent boxes that have passed the national patent technology are all made of Anshan Iron and Steel's 3mm cold plate; at the same time, they have undergone strict acid pickling and phosphating and multi-layer paint treatment, which effectively achieves the effect of fire prevention and corrosion protection. There is an eight-hour fuel tank at the bottom; the interior is treated with high-density flame-retardant high-quality sound-absorbing cotton with a thickness of 5 cm; the smoke exhaust system is treated with heat-insulating cotton and has a secondary silencer, and the noise during operation is kept below 68 decibels. The unique drain valve design, battery switch design, and explosion-proof lamp device are more humane. With its superb workmanship and remarkable noise reduction effect, our company's silent generators are quickly loved by customers at home and abroad and have obtained a large number of export orders, which are exported to Southeast Asia, America and African countries. As the company’s main characteristic low-noise generator set product, it cannot be satisfied with the status quo. It must continue to innovate and reform to design and manufacture low-noise generator set products with more noise reduction effects.
