| Brand Name: | SHX |
| Model Number: | SHX-1500 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Payment Terms: | T/T, L/C |
1500kw Cummins Diesel Generator Set 1875kva 50Hz 3 Phase Containerized Generator Power Plant
Power Specifications
1) 1500RPM at 50Hz
2) Water Cooled with radiator
3) Turbocharged
Electrical Specifications
1) Power Factor: 0.8 Lagging
2) 3 Phase 4 Pole
3) Insulation: Class H
4) Brushless
5) Self-Excited
6) IP23 Protection
7) AVR regulation
8) Starting by Batteries
Technical specifications
| Genset Model | SHX-1500 |
| Prime Power | 1500KW/1875KVA |
| Standby Power | 1650KW/2063KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 2706A |
| Genset Structure | Containerized type |
| Dimension | 1219×2438×2896mm |
| Net Weight | 24000KG |
| Noise level | 85db at 1 meter |
| Fuel Tank Capacity | 8 hours running |

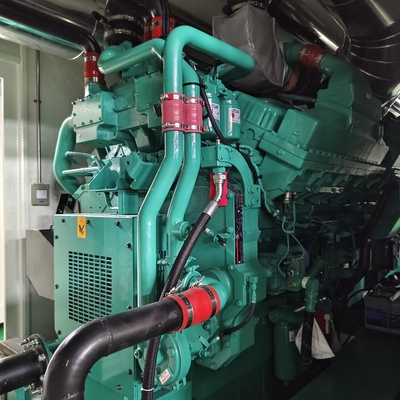

| Engine Model | Cummins QSK60-G3 |
| Engine Features | 16-cylinder, 4 stroke, water cooled, turbocharged |
| Bore*Stroke | 159×190mm |
| Displacement | 60.2L |
| 12-hour Power | 1615KW |
| Fuel Consumption | 370L/h |
| Compression Ratio | 14.5:1 |
| Governor type | Electrical |
| Alternator Model | Stamford S7L1D-F41 |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |

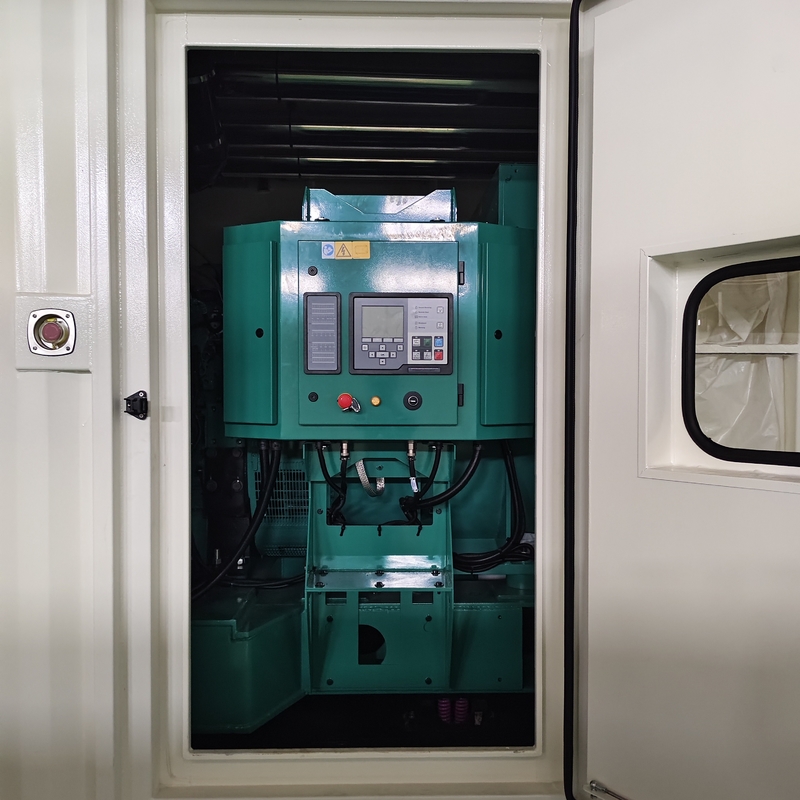

| Controler panel | Deepsea |
| DSE7320 | Intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |

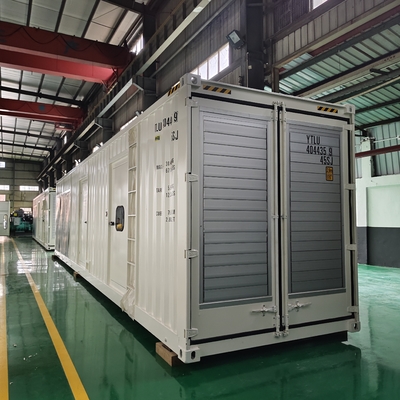

Containerized Generator Set Features
Containerized generator set integrates the generator with container of a compact
structure, including the cooling system, fuel supply system and control system,
which can be carried by vehicles. The dimension of containerized generator station
is the same with standard containers (20ft, 40ft, and 40ft HC), there are two
types: step-in containerized generator station with operating room, maintenance
room and duty room; non-step-in is compactly design.
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption
in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser
in advance of the test date notification.
1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected
shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers
satisfaction at the manufacturer’s cost.
1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.
1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries,
instruments and controls for a complete test of the generator set.
|
