Place of Origin: | China |
---|---|
Brand Name: | SHX |
Certification: | ISO9001:2015, CE |
Model Number: | SHX-1000 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Standard export packing |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 150 Sets per year |
Engine Brand: | Cummins | Alternator Brand: | Farrand |
---|---|---|---|
Control Panel: | Smartgen HGM6110N | Fuel System: | Mechanical Pump |
Starting Method: | 24V DC Batteries | Cooling System: | Water Cooled With Radiator |
Insulation: | Class H | Application: | Prime |
High Light: | 1000kva Standby Diesel Generator,Standby Diesel Generator Water Cooled |

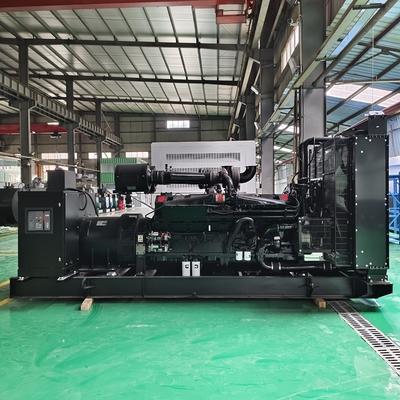

1000kva Standby Diesel Generator 50Hz Water Cooled 800kw Diesel Genset
Advantages of Diesel Generator Set Powered by Cummins Engine:
1. International Warranty Service
2. With ISO9001&CE certification
3. Spare parts are easy to get from worldwide market with much cheaper price
4. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Farrand alternator
5. Perfect after-service network
6. Both 50Hz and 60Hz
7. Rigorous test including 50% load,75% load,100% load and 110% load
8. Short delivery time
Genset full specifications as below:
Genset model | SHX-1000 |
Genset rated power | 800KW/1000KVA |
Rated voltage | 400/230V (adjustable) |
Rated current | 1443A |
Frequency | 50Hz |
Power factor | 0.8 Lagging |
Connecting type | 3 phase 4 wire |
Cooling system | Closed cycle water-cooled with radiator |
Overall dimension (L×W×H) mm | 4200×1800×2300 |
Weight (kg) | 7900 |
Diesel Engine | |
Brand | Cummins |
Model | KTA38-G5 |
Engine type | 12 cylinders in vee, 4 stroke, air-to-air after-cooled |
Aspiration | Turbocharged |
Rotating speed | 1500 RPM |
Engine cooling system | Water-cooled |
Speed governing system | Electronic speed governor |
Starting method | By 24V batteries |
Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
Displacement (L) | 37.8 |
Bore×Stroke (mm) | 159×159 |
Compression ratio | 13.9: 1 |
100% Load fuel consumption (g/kw.h) | ≤204 |
Lube capacity (L) | 114 |
Alternator | |
Brand | Farrand |
Model | FLD634E |
Excite type | Brushless self-excited AVR regulation |
Connecting type | 3 phase 4 pole |
Steady frequency change | 0.50% |
No load voltage | ≥95%-105% |
Steady voltage | ≤±1% |
Insulation class | Class H |
Protection grade | IP23 |
The components of the genset | |
(1) Diesel engine; (2) Alternator; (3) Radiator assembly; (4) Control panel; (5) Base frame. |
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to customer’s requirement.
4. Full warranty cover to support the customers.
Now Sunkings Electric Co., Ltd. Product line covers
1. Open type gensets.
2. Silent type gensets.
3. Trailer mounted gensets.
4. Containerized gensets.
5. Fuel tanks.
6. Industrial Silencers & other genset accessories.
