Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SHX-413 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine Brand: | Cummins | Alternator Brand: | Farrand |
|---|---|---|---|

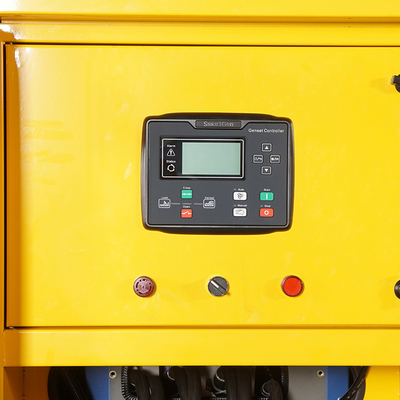

| Control Panel: | Smartgen HGM6110N | Fuel System: | Mechanical Pump |
| Aspiration: | Turbocharged And Intercooled | Connection: | 3 Phase 4 Wire |
| Voltage Regulation: | AVR | Warranty: | 1 Year Or 1000 Running Hours |
| Highlight: | 300kw Cummins Diesel Generator Set,Silent Cummins Diesel Generator Set |
||

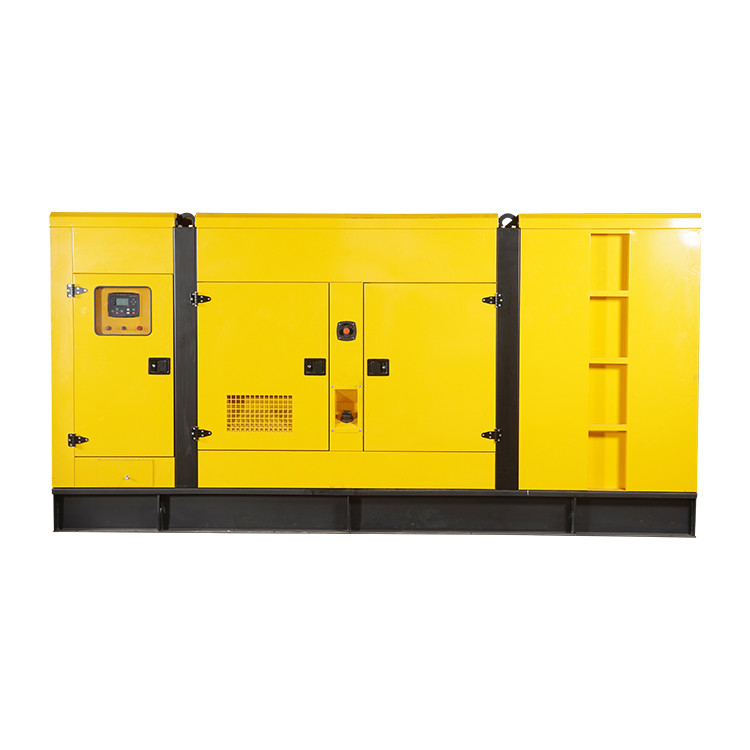

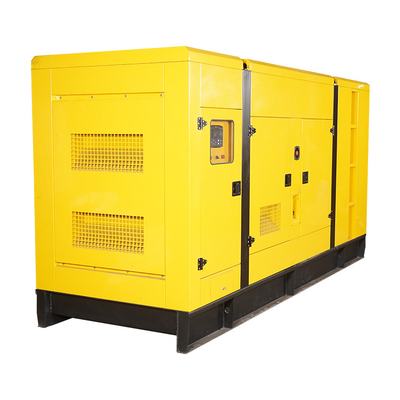

300kw Cummins Diesel Generator Set 50Hz 375kva Silent Diesel Generator For Industry
SHX Soundproof Generator Set Features:
A new kind of acoustic material is used as pugging, noise reducing return-flow wind tunnel is used as
generator set's ventilation system, and louver is installed in the window to prevent rains and other intruders.
High efficiency silencer with double level structure and another silencer between two levels keep the noise
at the lowest level. The box is modular structure with indicator and maintenance doors which make installation,
operation and maintenance very convenient. Benefited from the special design, medium low noise diesel generator
set's noise can be as low as 75dB (A) (at LP7m). Fuel tank can be installed on it according to customer needs.
Genset Specifications
| Genset model | SHX-413 |
| Genset rated power | 300KW / 375KVA |
| Rated voltage | 240V / 415V (adjustable) |
| Rated current | 541 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 4200×1400×2100 |
| Weight (kg) | 3800 |
Engine Specifications
| Diesel Engine | |
| Brand | CCEC CUMMINS |
| Model | NTAA855-G7 |
| Engine structure | 6 cylinders vertical in line, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 14 |
| Bore×Stroke(mm) | 140×152 |
| Compression ratio | 14.0: 1 |
| 100% Load fuel consumption (litre/h) | ≤79 |
| Lube oil capacity(L) | 36 |
Alternator Specifications
| Alternator | |
| Brand | FARRAND |
| Model | FLD444FS |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Why choose Cummins powered gensets?
1. Cummins engines which are made in China with the same standard of the US Cummins keep the quality
almost the same as the US Cummins.
2. More than 90% of the Engines components and spares are made in China which keeps the cost much lower.
3. Cummins engines are universally just as Cummins factories all around the world; all the spares are universal
which make the maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right near your house.
5. Engineers are more familiar with Cummins engines because they are most widely use in every filed and everywhere around the world.
SCOPE OF SUPPLY
1. DIESEL ENGINE
1.1 Engine which includes wet type cylinder, direct injection combustion chamber, exhaust turbocharger, water cooling,
electronic governor, etc.
1.2 Fuel system, which includes, fuel pump, strainers or filters, etc.
1.3 Air intake and exhaust system, which includes air filter, exhaust silencer, bellow, all intake and exhaust piping, cablings,
instruments, valves and settings, etc.
1.4 Cooling system, which includes radiator with water level alarm and indicator, thermostatic switch, thermostatic heater,
engine shaft mounted fan, all interconnecting piping, cablings, instruments, valves and settings, etc.
1.5 Lubricating system includes pumps, oil sumps, oil strainers and filters, all interconnecting piping, instruments, valves
and settings, etc.
1.6 Starting system, which includes 2 sets of batteries, a set of AC charger, and interconnecting piping, cablings, instrument,
valves and settings, etc.
2. AC SYNCHRONOUS GENERATOR
2.1 Generator, which includes exciter, rectifier, AVR, shaft mounted fan if required.
2.2 All interconnecting piping, cablings, instruments, valves and settings, etc.
3. COUPLINGS AND GUARD
3.1 Coupling
3.2 Coupling Guard
4. CONTROL PANEL
4.1 Local automatic control panel
5. BASEPLATE
5.1 Common base plate
6. DOCUMENTS
6.1 Generator Set Installation Manual
6.2 Generator Set Operation and Maintenance Manual
6.3 Generator Set Control Panel Manual
6.4 Engine Manual and Quality File
6.5 Alternator Manual and Quality File
6.6 Factory Acceptant Test Report
6.7 Relative Drawings and Diagrams
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to customer’s requirement.
4. Full warranty cover to support the customers.
