Brand Name: | SHX |
Model Number: | SHX-300 |
MOQ: | 1 Set |
Price: | Negotiable |
Packaging Details: | Standard export packing |
Payment Terms: | T/T, L/C |

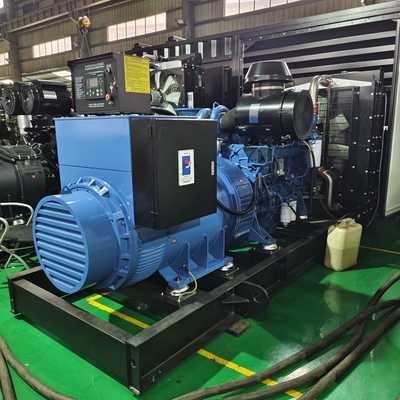

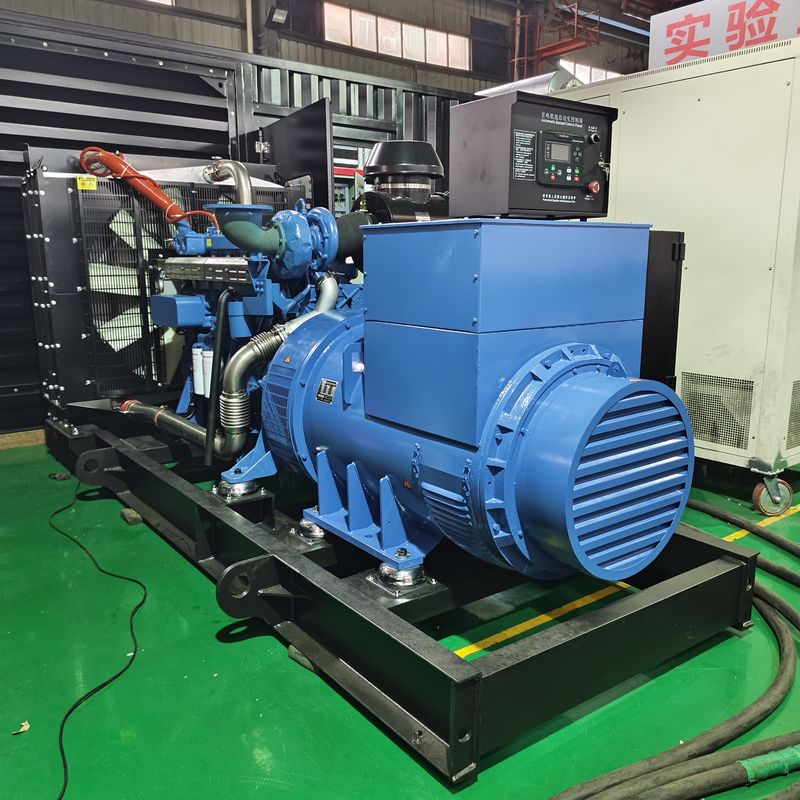

300kw Biogas Generator 50Hz 400V 375kva Biogas Power Generator For Electricity
Why choose Cummins powered gensets?
1. Cummins engines which are made in China with the same standard of the US Cummins keep the quality
almost the same as the US Cummins.
2. More than 90% of the Engines components and spares are made in China which keeps the cost much lower.
3. Cummins engines are universally just as Cummins factories all around the world; all the spares are universal
which make the maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right near
your house.
5. Engineers are more familiar with Cummins engines because they are most widely use in every filed and
everywhere around the world.
Continuous power | 300KW |
Standby power | 330KW |
Frequency | 50HZ |
Rated voltage | 400V |
Phase & Wire | 3P 4W |
Power factor | 0.8 |
Rated speed | 1500 |
Cooling mode | Water cooled |
Damping system | High elastic rubber shock absorber |
Steady state voltage regulation rate % | ≤±1 |
Transient voltage regulation rate % | ≤±15 |
Voltage stabilization time S | ≤3 |
Voltage fluctuation rate % | ≤±0.5 |
Steady state current regulation rate % | ≤5 |
Transient current regulation rate % | ≤±10 |
Current stabilization time S | ≤3 |
Current fluctuation rate % | ≤0.5 |
Generator controller | Smartgen HGM6110N |
Breaker | DELIXI MCCB |
Overall dimension of unit (Silent type ) | 4200×1800×2600mm (Reference) |
Unit weight ( Silent type ) | 5800KG |
Gas Engine Parameters
Brand
|
CCEC | Continuous power | 343kWm |
Engine Model | K19N-G1 | Gas pressure |
7-35kPa
|
Gas type |
Natural Gas/Biogas
|
Speed governor | Electronic governor |
Gas consumption | 10.0 MJ/kw.h | Oil capacity |
64-72L
|
Rated speed | 1500 | Bore*stroke | 159×159mm |
Displacement (L) | 19 | Cooling method | Water cooled |
Compression ratio | 11:1 | Starting voltage | DC 24V |
Engine Characters | Water-cooling, L type 6 cylinders, 4 Stroke | Crankshaft rotation direction | anticlockwise(facing flywheel) |
Starting method | Electric start | Model of lubricating oil | 15W-40CH and above |
Intake type | Turbocharged Aftercooled |
Alternator Parameters
Brand | Leroy Somer | Place of Origin | Fuzhou,China |
Model | TAL-A473-A | Capacity (KW) | 320 |
Excitation mode | Pure copper self excitation without brush | Frequency(HZ) | 50 |
Cooling mode | Natural cooling | Voltage regulating system | AVR Automatic voltage regulation |
Degree of protection | IP23 | Insulation class | H |
Features
1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption
in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the
purchaser in advance of the test date notification.
1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment
rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the
purchasers satisfaction at the manufacturer’s cost.
1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.
1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with all
auxiliaries, instruments and controls for a complete test of the generator set.
