Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SHX-600 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Sets per year |
| Engine Brand: | CCEC Cummins | Alternator Brand: | Leroy Somer |
|---|---|---|---|
| Controller: | Deep Sea DSE7320 | Application: | Continuous |
| Aspiration: | Turbocharged And Aftercooled | Gas Type: | Natural Gas/Biogas |
| Cooling System: | Water Cooled | Warranty: | One Year Or 1000 Running Hours |
| Highlight: | 750kva Biomass Electric Generator,Biomass Electric Generator,600kw Natural Gas Powered Generators |
||

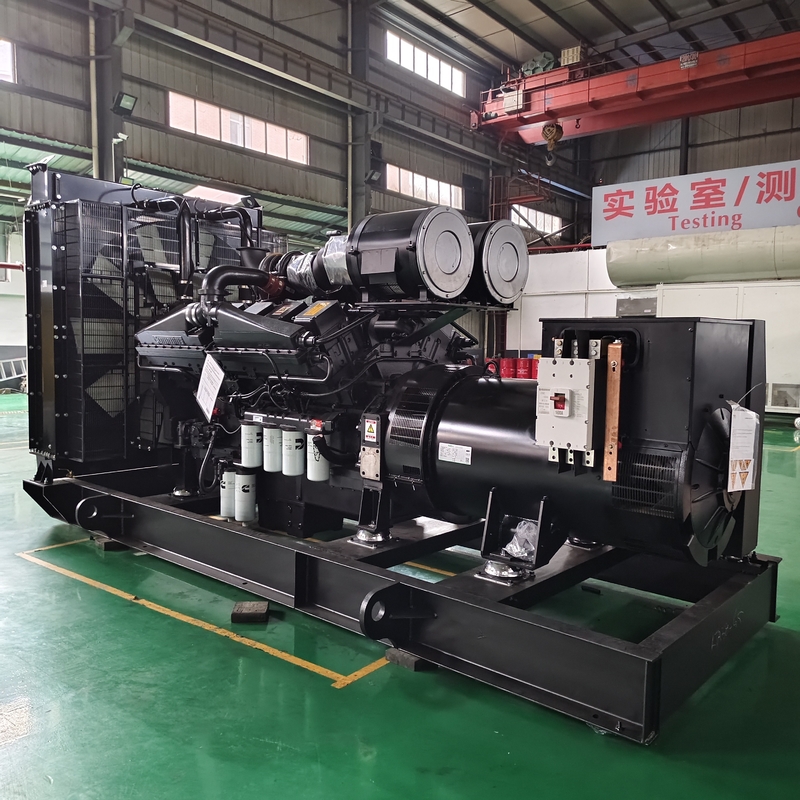

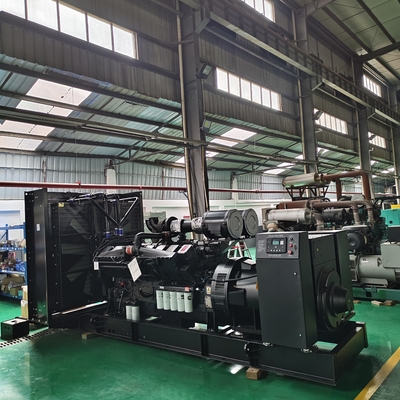

600kw Natural Gas Powered Generators 750kva Biomass Electric Generator
Product Advantages
1) Low exhaust gas
2) Independent fuel direct gush-oil system
3) Low fuel consumption
4) Steady performance
5) Good power-weight ratio
6) Small, compact structure, beautiful appearance
7) Easy to facilitate installation, easy to maintenance
| Continuous power | 600KW |
| Standby power | 660KW |
| Frequency | 50HZ |
| Rated voltage | 400V |
| Phase & Wire | 3P 4W |
| Power factor | 0.8 |
| Rated speed | 1500 |
| Cooling mode | Water cooled |
| Damping system | High elastic rubber shock absorber |
| Steady state voltage regulation rate % | ≤±1 |
| Transient voltage regulation rate % | ≤±15 |
| Voltage stabilization time S | ≤3 |
| Voltage fluctuation rate % | ≤±0.5 |
| Steady state current regulation rate % | ≤5 |
| Transient current regulation rate % | ≤±10 |
| Current stabilization time S | ≤3 |
| Current fluctuation rate % | ≤0.5 |
| Generator controller | Smartgen HGM6110N |
| Breaker | DELIXI MCCB |
| Overall dimension of unit (Silent type ) | 5000×2000×2650mm (Reference) |
| Unit weight ( Silent type ) | 6500KG |
Gas Engine Parameters
|
Brand
|
CCEC | Continuous power | 343kWm |
| Engine Model | K38N-G6 | Gas pressure |
5-20kPa
|
| Gas type |
Natural Gas
|
Speed governor | Electronic governor |
| Gas consumption | 9.3 MJ/kw.h | Oil capacity |
140-166L
|
| Rated speed | 1500 | Bore*stroke | 159×159mm |
| Displacement (L) | 38 | Cooling method | Water cooled |
| Compression ratio | 11.5:1 | Starting voltage | DC 24V |
| Engine Characters | Water-cooling, V type 12 cylinders, 4 Stroke | Crankshaft rotation direction | anticlockwise(facing flywheel) |
| Starting method | Electric start | Model of lubricating oil | 15W-40CH and above |
| Intake type | Turbocharged Aftercooled |
Alternator Parameters
| Brand | Leroy Somer | Place of Origin | Fuzhou,China |
| Model | TAL-A49-B | Capacity (KW) | 600 |
| Excitation mode | Pure copper self excitation without brush | Frequency(HZ) | 50 |
| Cooling mode | Natural cooling | Voltage regulating system | AVR Automatic voltage regulation |
| Degree of protection | IP23 | Insulation class | H |
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to customer’s requirement.
4. Full warranty cover to support the customers.
Electrical Parameters
Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of VDE0875-N and ISO8528
Control Function
Key start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output
Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure;
High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.
Containerized Generator Set Features
Containerized generator set integrates the generator with container of a compact
structure, including the cooling system, fuel supply system and control system,
which can be carried by vehicles. The dimension of containerized generator station
is the same with standard containers (20ft, 40ft, and 40ft HC), there are two
types: step-in containerized generator station with operating room, maintenance
room and duty room; non-step-in is compactly design.
