products details

Home > Products >

Standby Diesel Generator

1000kVA SDEC Power Standby Diesel Generator 1MVA 800kW Shangchai Genset For Shopping Malls

All Category

Emergency Diesel Generator

Mr. Wu Kelson

kelson@sunkings.cn

Contact Now

1000kVA SDEC Power Standby Diesel Generator 1MVA 800kW Shangchai Genset For Shopping Malls

Brand Name:	SHX
Model Number:	SHX-1000
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Standard export packing
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015, CE

Color:

Engine Brand:

Alternator Brand:

Leroy Somer

Controller:

Deep Sea DSE7320

Fuel System:

High Pressure Common Rail

Speed Governing:

Cooling System:

Water Cooled With Radiator

Voltage Regulation:

Supply Ability:

100 sets per year

Highlight:

1000kVA Standby Diesel Generator

1MVA Standby Diesel Generator

Shopping Malls Standby Diesel Generator

Product Description

1000kVA SDEC Power Standby Diesel Generator 1MVA 800kW Shangchai Genset For Shopping Malls

Power Specifications

1) 1500RPM at 50Hz

2) Water cooled

3) Turbocharged

Electrical Specifications

1) Power factor: 0.8 Lagging

2) 3 Phase 4 Pole

3) Insulation: Class H

4) Brushless

5) Self-Excited

6) IP23 Protection

7) AVR regulation

8) Starting by Battery

Genset Specifications

Genset model	SHX-1000
Genset rated power	800kW / 1000kVA
Rated voltage	230/400V
Rated current	1443A
Frequency	50 Hz
Power factor	0.8 Lagging
Connecting type	3 phase 4 wire
Cooling system	Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm	4500×1800×2300
Weight (kg)	6500

Engine Specifications

Diesel Engine
Brand	SDEC Power
Model	6KTAA25-G321
Engine structure	6 cylinders in line, 4 stroke, turbocharged
Rotating speed	1500 RPM
Engine cooling method	Water-cooled
Speed governing system	ECU
Starting method	By 24V batteries
Engine filter system	Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L)	25.18
Bore×Stroke(mm)	170×185
Compression ratio	14.5: 1
100% Load fuel consumption (litre/h)	201
Lube capacity(L)	45-75

Alternator Specifications

Alternator
Brand	LEROY SOMER
Model	TAL-A49-E
Excite type	Brushless self-excited AVR regulation
Connecting type	3 phase 4 pole
Steady frequency change	0.50%
No load voltage	≥95%-105%
Steady voltage	≤±1%
Insulation class	Class H
Protection grade	IP23

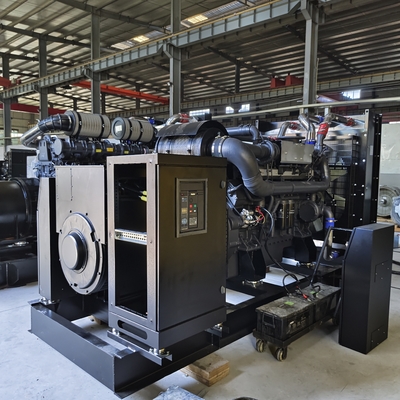

1000kVA SDEC Power Standby Diesel Generator 1MVA 800kW Shangchai Genset For Shopping Malls 0

SCOPE OF SUPPLY

1. DIESEL ENGINE

1.1 Engine which includes wet type cylinder, direct injection combustion chamber, exhaust turbocharger,

water cooling, electronic governor, etc.

1.2 Fuel system, which includes, fuel pump, strainers or filters, etc.

1.3 Air intake and exhaust system, which includes air filter, exhaust silencer, bellow, all intake and exhaust

piping, cablings, instruments, valves and settings, etc.

1.4 Cooling system, which includes radiator with water level alarm and indicator, thermostatic switch, thermostatic

heater, engine shaft mounted fan, all interconnecting piping, cablings, instruments, valves and settings, etc.

1.5 Lubricating system includes pumps, oil sumps, oil strainers and filters, all interconnecting piping, instruments,

valves and settings, etc.

1.6 Starting system, which includes 2 sets of batteries, a set of AC charger, and interconnecting piping, cablings,

instrument, valves and settings, etc.

2. AC SYNCHRONOUS GENERATOR

2.1 Generator, which includes exciter, rectifier, AVR, shaft mounted fan if required.

2.2 All interconnecting piping, cablings, instruments, valves and settings, etc.

3. COUPLINGS AND GUARD

3.1 Coupling

3.2 Coupling Guard

4. CONTROL PANEL

4.1 Local automatic control panel

5. BASEPLATE

5.1 Common base plate

6. DOCUMENTS

6.1 Generator Set Installation Manual

6.2 Generator Set Operation and Maintenance Manual

6.3 Generator Set Control Panel Manual

6.4 Engine Manual and Quality File

6.5 Alternator Manual and Quality File

6.6 Factory Acceptant Test Report

6.7 Relative Drawings and Diagrams

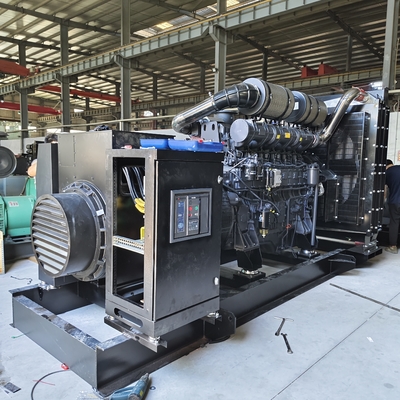

1000kVA SDEC Power Standby Diesel Generator 1MVA 800kW Shangchai Genset For Shopping Malls 1

OEM Service:

Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM Service for customers.

1. Unique design and manufacture of generator according to customer’s requirement.

2. Customer logo printing or painting on the genset.

3. Installation and Operation manual neutral or headings can be design according to customer’s requirement.

4. Full warranty cover to support the customers.
