Guangdong Sunkings Electric Co., Ltd
| Place of Origin: | China |
|---|---|
| Brand Name: | SHX |
| Certification: | ISO9001:2015, CE |
| Model Number: | SHX-1500 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 150 Sets per year |
| Engine: | Cummins | Alternator: | SK-1200-L |
|---|---|---|---|
| Control Panel: | Smartgen HGM6110N | Cylinders: | 16V |
| Fuel System: | Cummins PT Pump | Starting Method: | Electrical |
| Warranty: | 1 Year Or 1000 Running Hours | Protection: | IP23 |

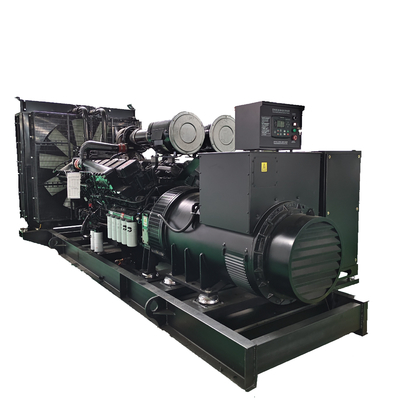

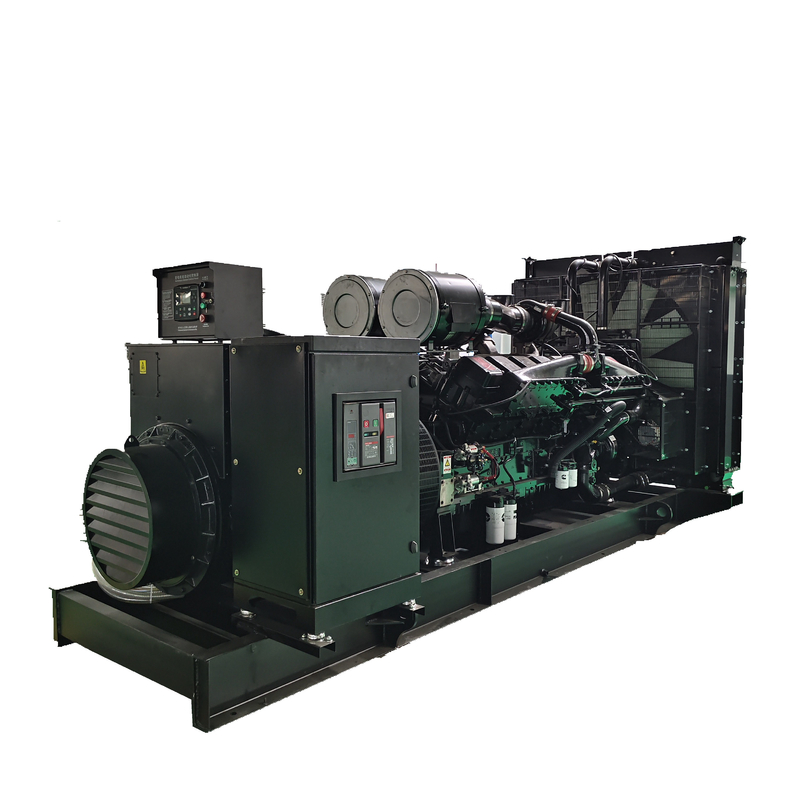

1500RPM 1500KVA Diesel Generator With Cummins Engine 1200kw Open Frame Genset
Advantages of Diesel Generator Set Powered by Cummins Engine:
1. International Warranty Service
2. With ISO9001&CE certification
3. Spare parts are easy to get from worldwide market with much cheaper price
4. Coupled with Stamford alternator, Leroy Somer alternator or Chinese Farrand alternator
5. Perfect after-service network
6. Both 50Hz and 60Hz
7. Rigorous test including 50% load,75% load,100% load and 110% load
8. Short delivery time
Technical Specification
| Genset model | SHX-1500 |
| Genset rated power | 1200KW/1500KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 2165A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with radiator |
| Overall dimension (L×W×H) mm | 5800×2200×2500 |
| Weight (kg) | 10000 |
| Diesel Engine | |
| Brand | CCEC Cummins |
| Model | KTA50-GS8 |
| Engine type | 16 cylinders in vee, 4 stroke, diesel |
| Aspiration | Turbocharged and aftercooled |
| Rotating speed | 1500RPM |
| Engine cooling system | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 50.3 |
| Bore×Stroke (mm) | 159×159 |
| Compression ratio | 13.9:1 |
| 100% Load fuel consumption (g/kw.h) | ≤199 |
| Lube capacity (L) | 151 |
| Alternator | |
| Brand | SK |
| Model | SK-1200-L |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset | |
| (1) Diesel engine; (2) Alternator; (3) Radiator assembly; (4) Control system; (5) Base frame. | |
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both
sides for 50%.
4) 24 hours service hotline is available for customers.
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to customer’s requirement.
4. Full warranty cover to support the customers.
FAQ
1.What is the power range of your diesel generator sets?
Answer: We can provide diesel generator sets from 25kva to 2750kva.
2.What is your payment term?
Answer: We can accept T/T and L/C.
3.What is your warranty?
Answer: One year or 1000 running hours whichever comes first.
4.What is your MOQ?
Answer: MOQ is 1 set.
5.What is the frequency and voltage standard or your diesel generator sets?
Answer: 50Hz / 60Hz, 480/277V, 415/240V, 400/230V, 380/220V or requested voltage.
6.Do you offer OEM service?
Answer: Yes.
7.What is your delivery time?
Answer: Average 20 days.
